R252-W34KA-DD
R252
- Custom Build - Request Availability

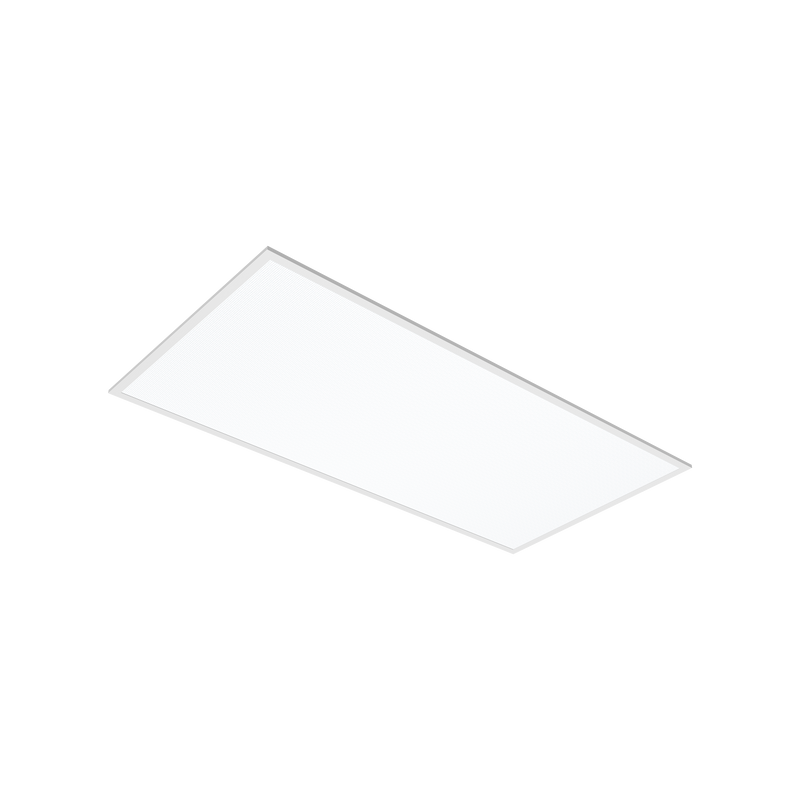

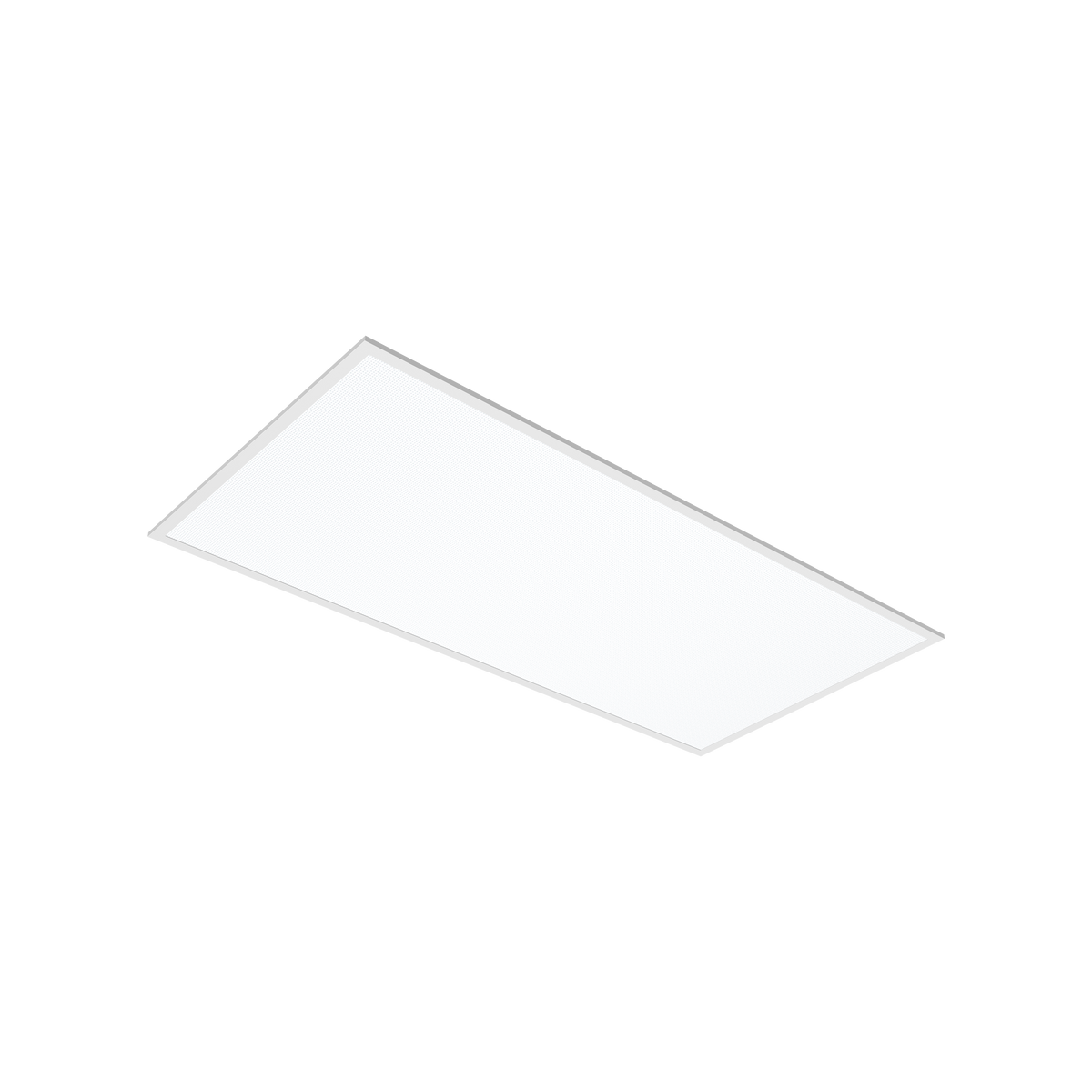

R252-W34KA-DD 12x6 Dali Proline Panel V2 - 3K/4K White
Lumens
Watts
4760lm, 5160lm, 5480lm, 5870lm, 6290lm, 6600lm or 6980lm (Selectable)
39-60W
View Options
-
12x6 Surface Mount Kit White
-
12x6 Recessed Frame Kit White
-
12x3 & 12x6 Suspension Kit Stainless Steel
-
Cable Restraint 300mm (4 pack)
Select Panels
R252
12x6 Dali Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4760lm, 5160lm, 5480lm, 5870lm, 6290lm, 6600lm or 6980lm (Selectable)
Watts
39-60W
R252
12x6 Standard Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
3300lm, 4250lm, 4880lm or 5520lm (Selectable)
Watts
26W, 34W, 40W or 46W
R252
12x6 Standard Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
3300lm, 4250lm, 4880lm or 5520lm (Selectable)
Watts
26W, 34W, 40W or 46W
R252
12x6 Dimmable Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4880lm
Watts
40W
R252
12x6 Dimmable Proline Panel V2 - 4K/57K White
Temp.
4000K, 5000K or 5700K (Selectable)
Lumens
4880lm
Watts
40W
R252
12x6 Dali Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4760lm, 5160lm, 5480lm, 5870lm, 6290lm, 6600lm or 6980lm (Selectable)
Watts
39-60W
R252
12x6 High Output Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
6980lm
Watts
60W
R252
12x6 High Output Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
6980lm
Watts
60W
R252
12x6 Casambi Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
5520lm
Watts
46W
R252
12x6 Casambi Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
5520lm
Watts
46W
R252
12x6 1-10V Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
6440lm
Watts
54W
R252
12x6 1-10V Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
6440lm
Watts
54W
Specifications
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
39-60W
Lumens
4760lm, 5160lm, 5480lm, 5870lm, 6290lm, 6600lm or 6980lm (Selectable)
Beam Angle
90°
Input
220-240V 50/60Hz
Dimming / Control
Dali
CRI
90
Lifespan
60,000hrs (L80 B10)
RAL Colour
RAL9016
Height
34mm
Width
595mm
Length
1195mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, SPCC, PS
Electrical Class
Class II
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
