R249-W34KA-DD
R249
- Custom Build - Request Availability

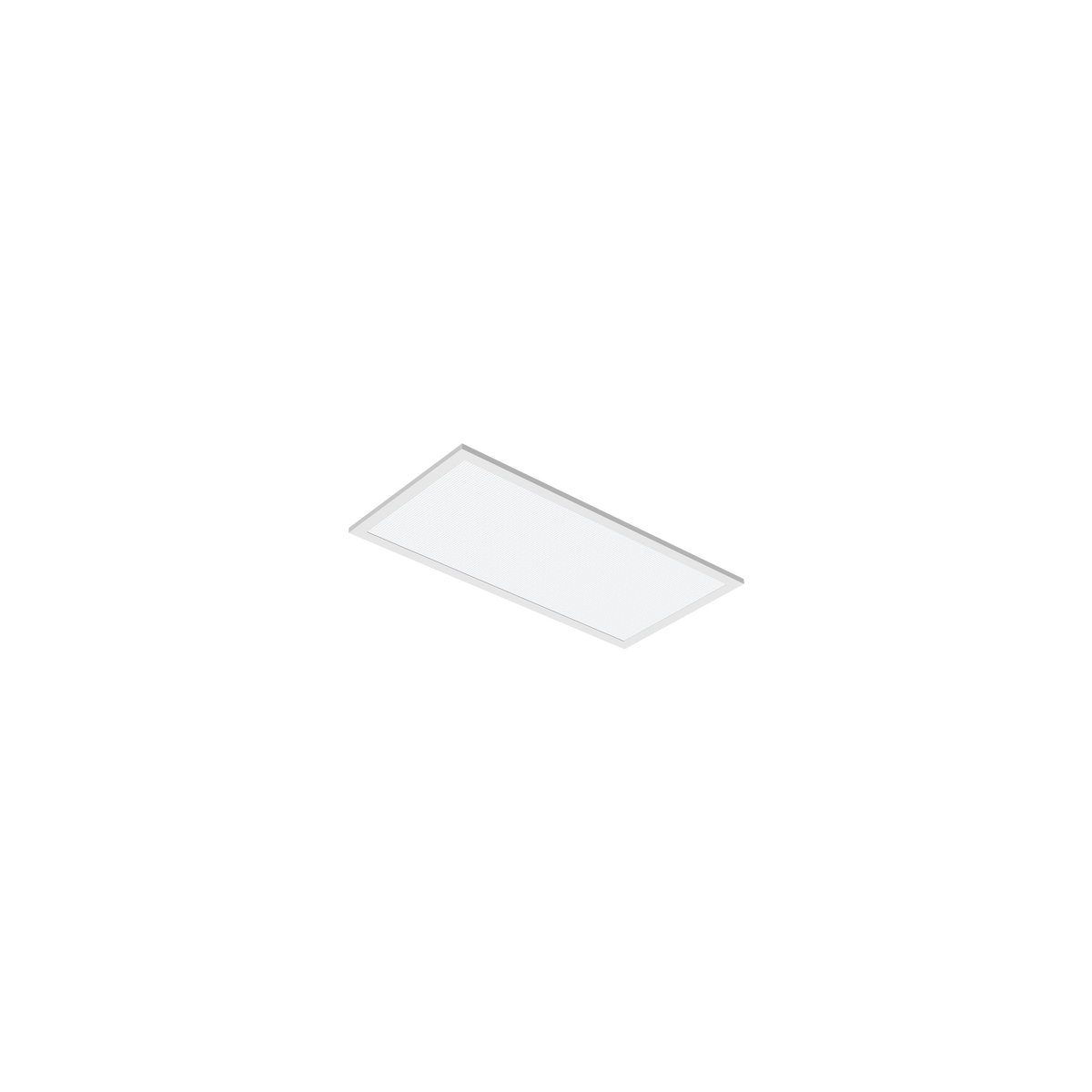

R249-W34KA-DD 6x3 Dali Proline Panel V2 - 3K/4K White
Lumens
Watts
1900lm
18W
View Options
-
6x3 & 6x6 Suspension Kit
-
Cable Restraint 300mm (4 pack)
Select Panels
R249
6x3 Dali Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
1900lm
Watts
18W
R249
6x3 Standard Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
1700lm or 1900lm
Watts
18W
R249
6x3 Dimmable Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
2100lm
Watts
20W
R249
6x3 Casambi Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
1900lm
Watts
18W
R249
6x3 Proline Backlit Panel Non-dimmable White 4000K
Temp.
4000K Natural White
Lumens
2200lm
Watts
21W
Specifications
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
18W
Lumens
1900lm
Beam Angle
90°
Input
220-240V 50/60Hz
Dimming / Control
Dali
CRI
90
Lifespan
60,000hrs (L80 B10)
RAL Colour
RAL9016
Height
34mm
Width
595mm
Length
295mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, SPCC, PS
Electrical Class
Class II
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
