EX105
- Checking stock...
Configure your EX105 3 options
- Stainless Steel
- Copper (selected)
- Black

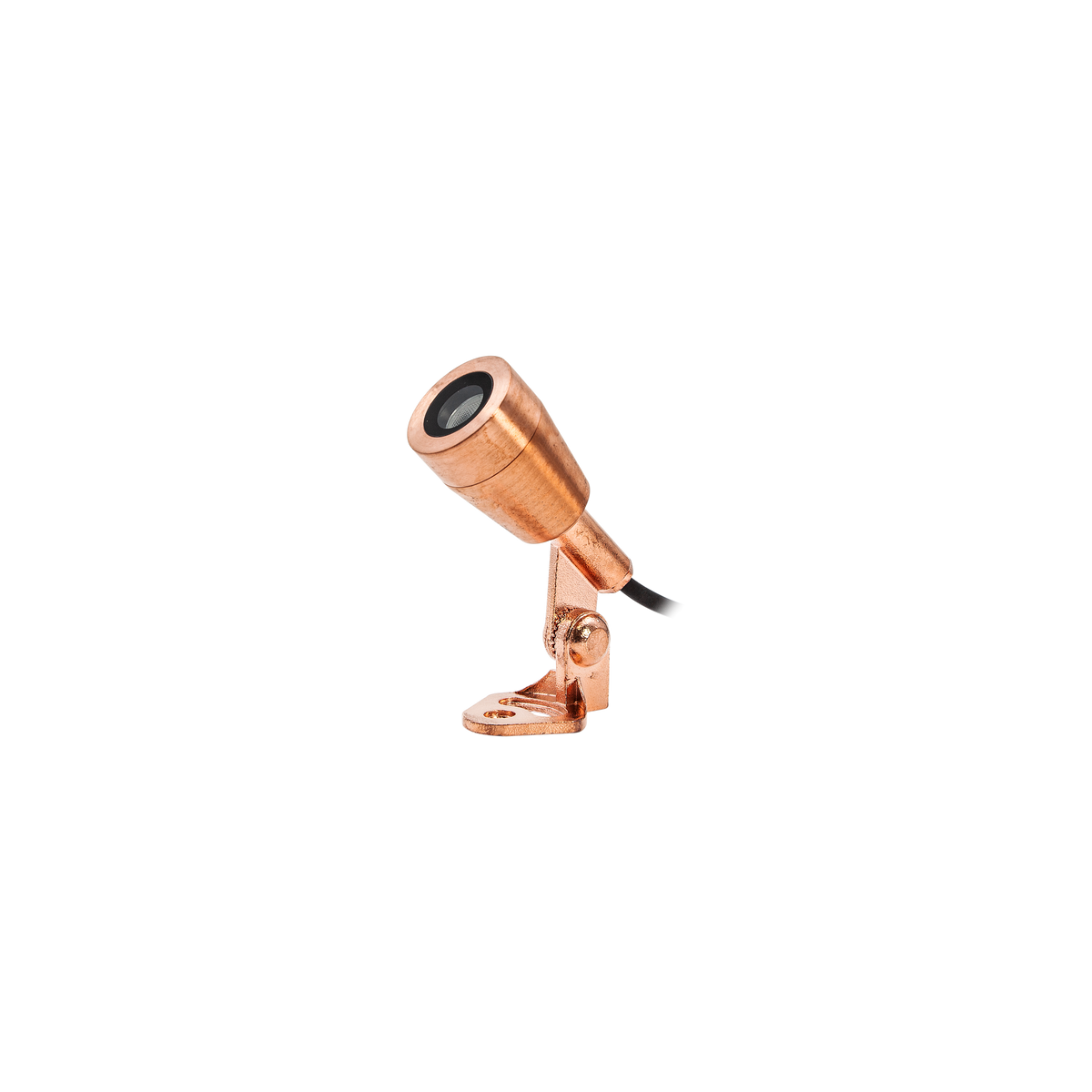

EX105 1CO27 Mini Landscape Spike/Surface Mount Spot Copper 2700K
Lumens
Watts
Tilt Angle
175lm
3W
90°
Not included
Please select from options
-
Exterior Feed Cable - 1M
-
Exterior Feed Cable - 10M
-
Exterior Extension Loop Cable - 1.5M
-
Exterior Extension Loop Cable - 2M
-
Exterior Extension Loop Cable - 3M
-
Exterior Extension Loop Cable - 5M
-
Exterior Extension Loop Cable - 10M
-
Three Way Spot Socket
-
Two Way Spot Socket
-
EX105 Anti-Glare Hood - Copper Copper
Select Spots
EX105
Mini Landscape Spike/Surface Mount Spot 316 Stainless Steel 2700K
Temp.
2700K Warm White
Tilt Angle
90°
Lumens
175lm
Watts
3W
EX105
Mini Landscape Spike/Surface Mount Spot Copper 2700K
Temp.
2700K Warm White
Tilt Angle
90°
Lumens
175lm
Watts
3W
EX105
Mini Landscape Spike/Surface Mount Spot Sand Black 2700K
Temp.
2700K Warm White
Tilt Angle
90°
Lumens
175lm
Watts
3W
Select driver
driver sold separately. Please select below.
Dimmable
DCV24-D-25W
24V 25W Constant Voltage Phase-cut Dimmable Driver
Watts
9.6W-25W
DCV24-D-50W
24V 50W Constant Voltage Phase-cut Dimmable Driver
Watts
12W-50W
Non Dimmable
DCV24-20W
24V 20W Constant Voltage Non-dimmable Driver
Watts
0W-20W
DCV24-40W
24V 40W Constant Voltage Non-dimmable Driver
Watts
0W-40W
DCV24-40W-IP
IP67 24V 40W Constant Voltage Non-dimmable Driver
Watts
0W-40W
DCV24-60W-IP-V2
IP67 24V 60W Constant Voltage Non-dimmable Driver
Watts
0-60W
DCV24-75W-IP
IP67 24V 75W Constant Voltage Non-dimmable Driver
Watts
0W-75W
DCV24-150W-IP
IP67 24V 150W Constant Voltage Non-dimmable Driver
Watts
0W-150W
DCV24-200W-IP
IP67 24V 200W Constant Voltage Non-dimmable Driver
Watts
0W-200W
DCV24-320W-IP
IP67 24V 320W Constant Voltage Non-dimmable Driver
Watts
0W-320W
Specifications
EX105 1CO27
Finish
Copper
Colour Temp
2700K Warm White
Watts
3W
Lumens
175lm
Beam Angle
25°
Input
24V DC
Dimming / Control
TRIAC (phase-cut) dimming only, not compatible with PWM
CRI
80
Tilt Angle
90°
Lifespan
50,000hrs
Ingress Protection
IP67
Diameter
Spot Ø : 41mm
Height
97mm
Length
Spike : L200mm
Binning
SDCM 5
Material
Copper
Electrical Class
Class III
Driver
Not included, Driver sold separately
Installation Note
TRIAC (phase-cut) dimming only, not compatible with PWM
Warranty
5 Year Warranty
