M80 Series
M80-T16-WW3K-45D
M80-T16
- Checking stock...

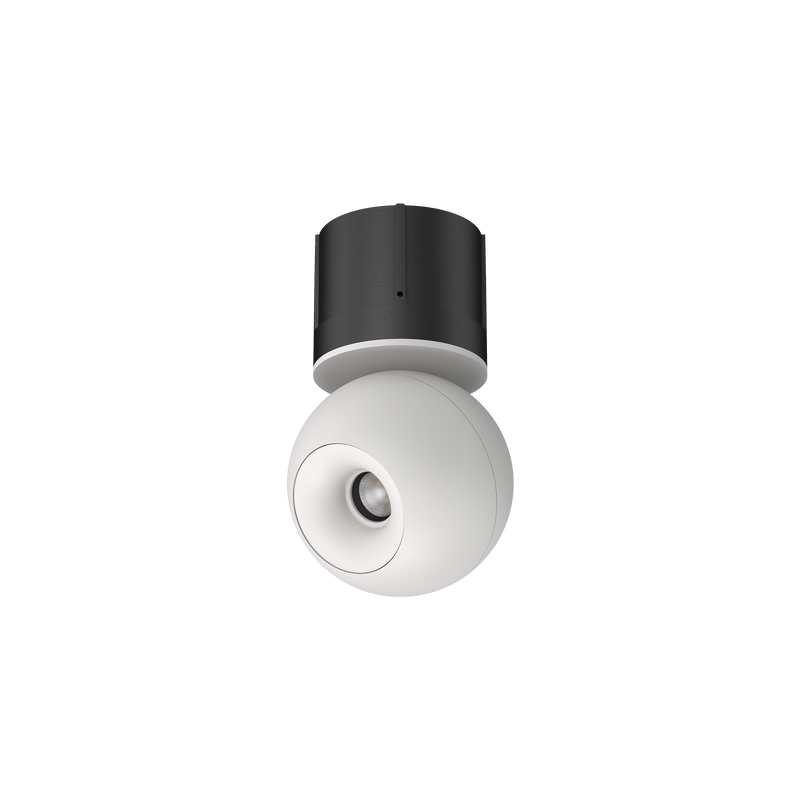

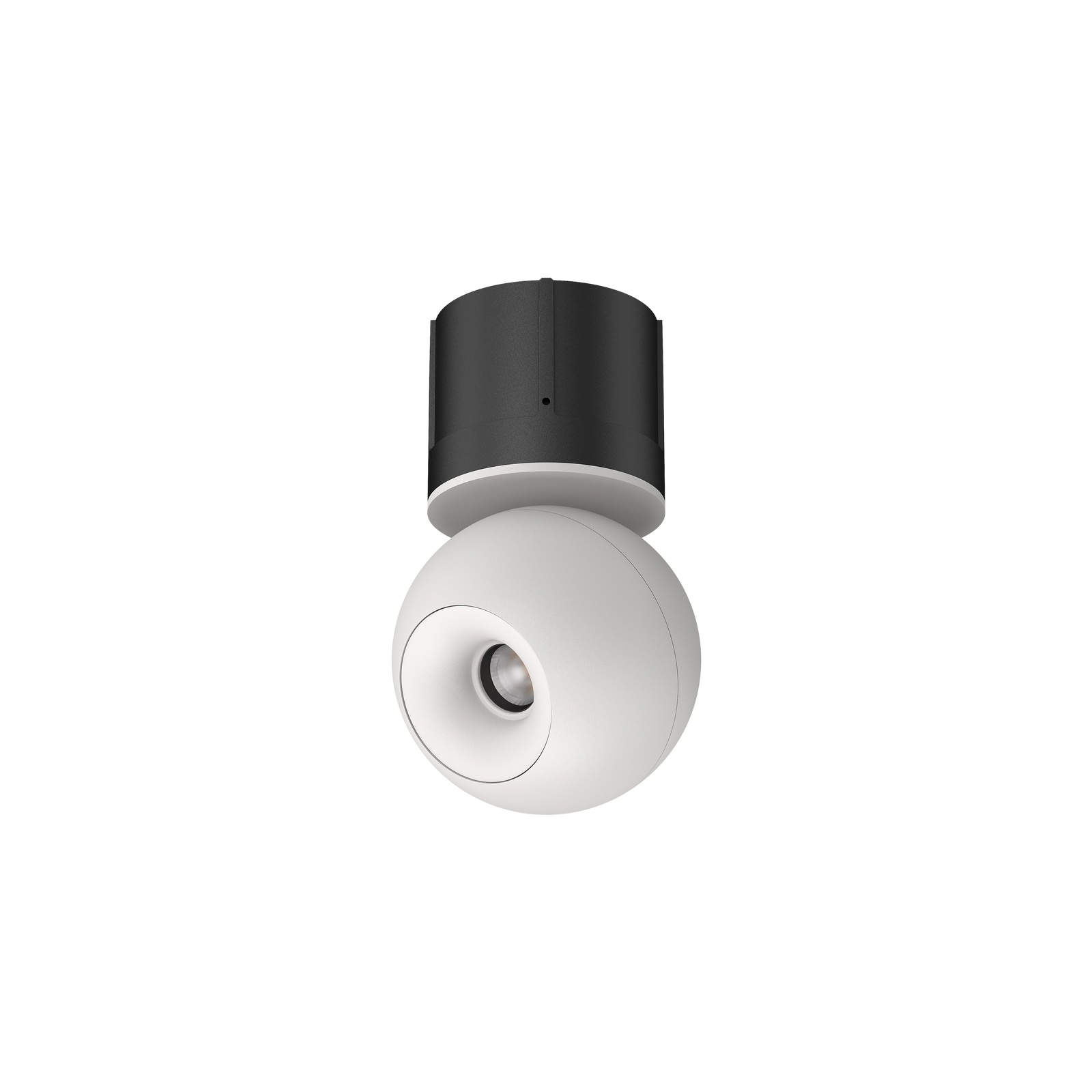

M80-T16-WW3K-45D Cevon M80 Type 16 Dark Art Sphere White 3000K
Lumens
Watts
Tilt Angle
1050lm
12W
60°
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M80-T16
Cevon M80 Type 16 Dark Art Sphere White 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
1050lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere White 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
930lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere White 4000K
Temp.
4000K Natural White
Tilt Angle
60°
Lumens
1065lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere White, Black 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
900lm
Rotate Angle
355°
Watts
12W
M80-T16

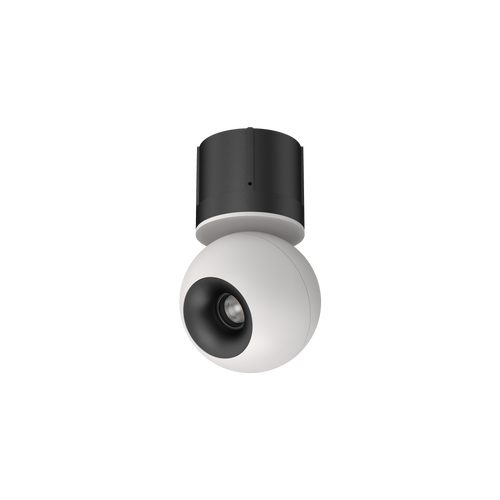

Cevon M80 Type 16 Dark Art Sphere White, Black 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
975lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere White, Black 4000K
Temp.
4000K Natural White
Tilt Angle
60°
Lumens
980lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere White, Gold 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
900lm
Rotate Angle
355°
Watts
12W
M80-T16

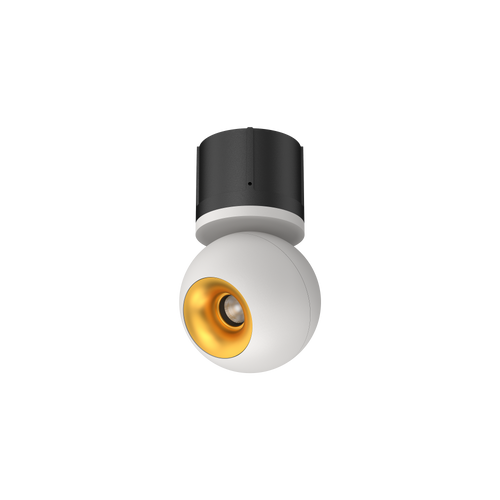

Cevon M80 Type 16 Dark Art Sphere White, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
975lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere White, Gold 4000K
Temp.
4000K Natural White
Tilt Angle
60°
Lumens
980lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere White, High Gloss Black 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
900lm
Rotate Angle
355°
Watts
12W
M80-T16

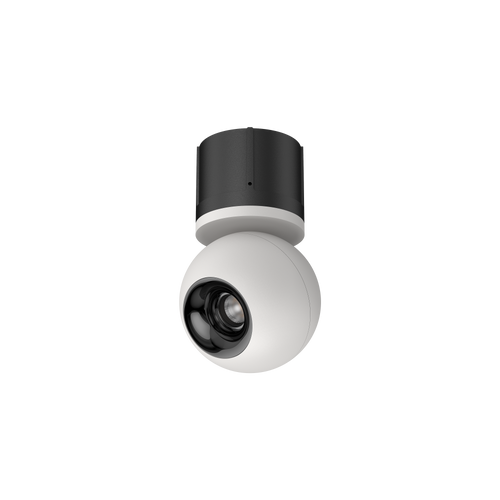

Cevon M80 Type 16 Dark Art Sphere White, High Gloss Black 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
975lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere White, High Gloss Black 4000K
Temp.
4000K Natural White
Tilt Angle
60°
Lumens
980lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere White, Silver 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
930lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
1050lm
Rotate Angle
355°
Watts
12W
M80-T16

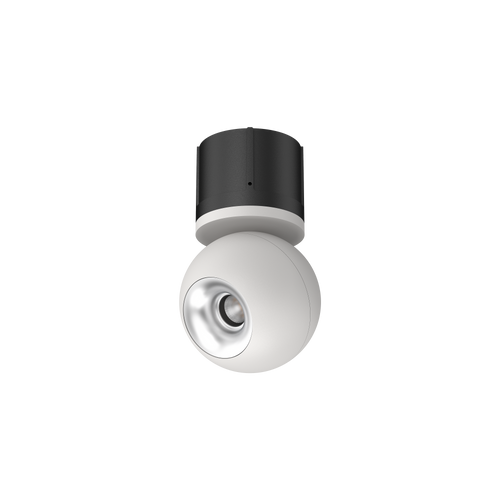

Cevon M80 Type 16 Dark Art Sphere White, Silver 4000K
Temp.
4000K Natural White
Tilt Angle
60°
Lumens
1065lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere Black 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
900lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere Black 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
975lm
Rotate Angle
355°
Watts
12W
M80-T16

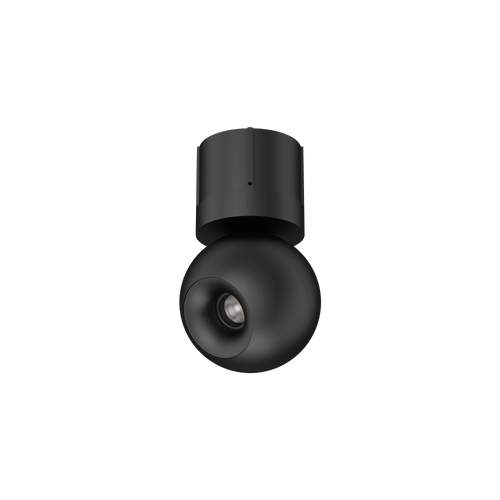

Cevon M80 Type 16 Dark Art Sphere Black 4000K
Temp.
4000K Natural White
Tilt Angle
60°
Lumens
980lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere Black, Gold 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
900lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere Black, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
975lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere Black, Gold 4000K
Temp.
4000K Natural White
Tilt Angle
60°
Lumens
980lm
Rotate Angle
355°
Watts
12W
M80-T16

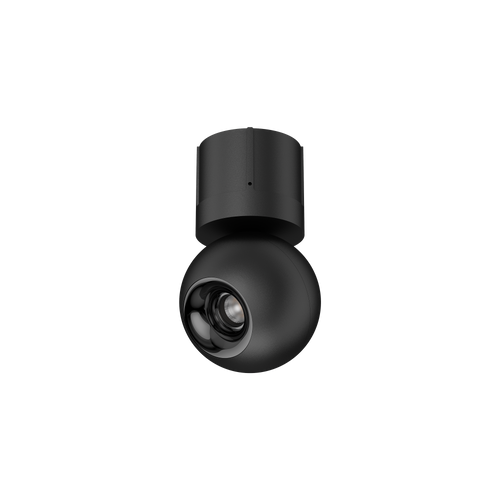

Cevon M80 Type 16 Dark Art Sphere Black, High Gloss Black 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
900lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere Black, High Gloss Black 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
975lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere Black, High Gloss Black 4000K
Temp.
4000K Natural White
Tilt Angle
60°
Lumens
980lm
Rotate Angle
355°
Watts
12W
M80-T16

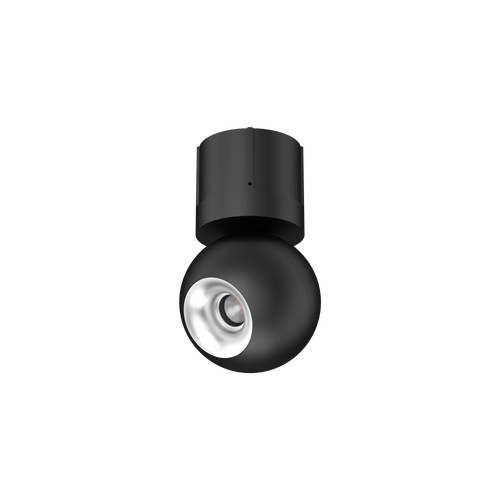

Cevon M80 Type 16 Dark Art Sphere Black, Silver 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
930lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere Black, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
1050lm
Rotate Angle
355°
Watts
12W
M80-T16
Cevon M80 Type 16 Dark Art Sphere Black, Silver 4000K
Temp.
4000K Natural White
Tilt Angle
60°
Lumens
1065lm
Rotate Angle
355°
Watts
12W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RR2
Cevon Recessed Oval Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RR2
Cevon Recessed Oval Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
12W
Lumens
1050lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Tilt Angle
60°
Rotate Angle
355°
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
Base: Ø78mm, Spot: Ø100mm
Height
Base: 68mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
