R250
- Checking stock...
Configure your R250 17 options
- White (selected)
- Black — not available in this configuration

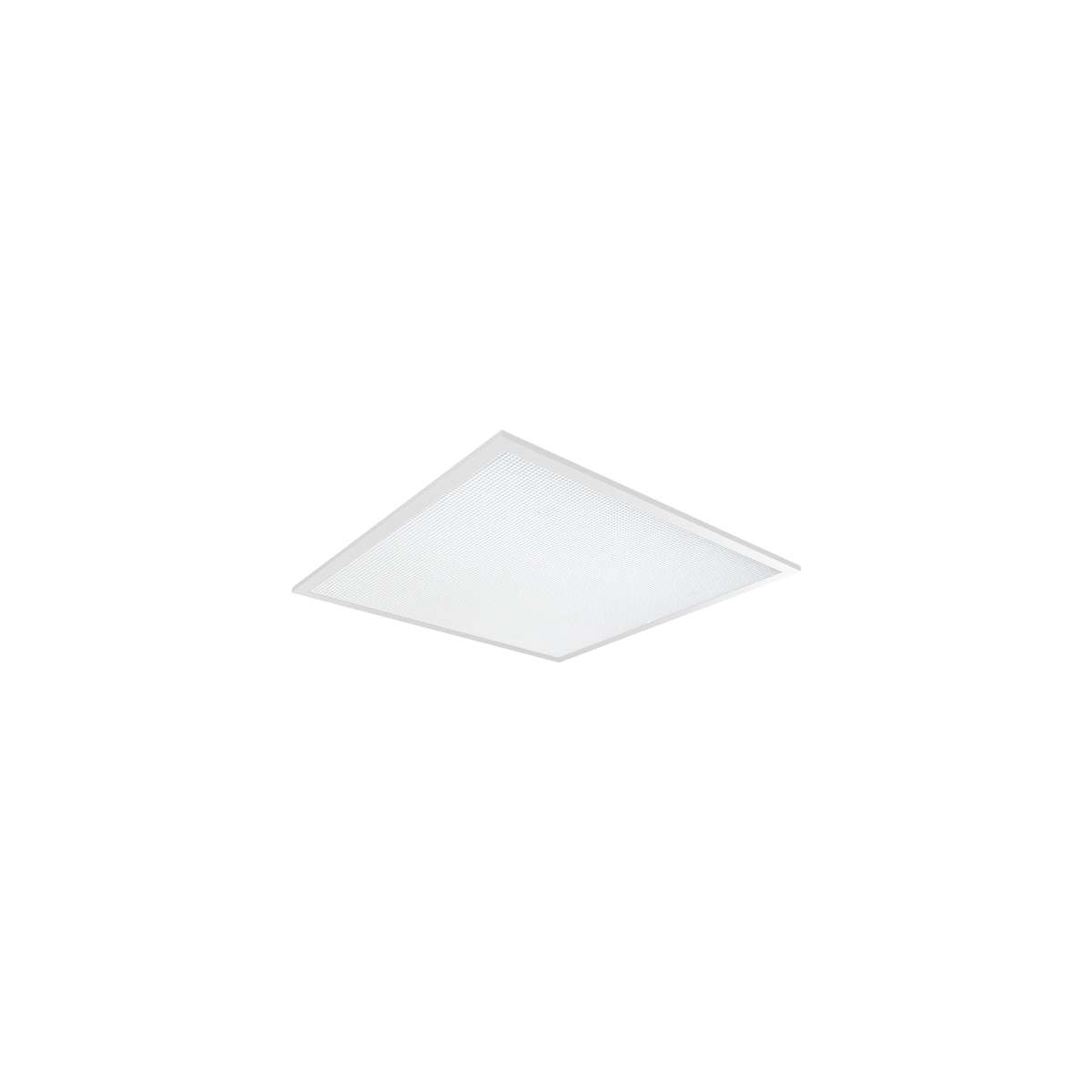

R250 W5 6x6 Proline Select Backlit Panel 27-42W White 5000K
Lumens
Watts
2800lm, 3400lm, 3500lm or 4000lm (Selectable)
27W, 33W, 36W or 42W
-
6x6 Surface Mount Kit White
-
6x6 Recessed Frame Kit White
-
6x3 & 6x6 Suspension Kit
-
Cable Restraint 300mm (4 pack)
Select Panel
6x6 Standard Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
2800lm, 3190lm, 3560lm or 3810lm (Selectable)
Watts
25W, 29W, 33W or 36W
6x6 Standard Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
2800lm, 3190lm, 3560lm or 3810lm (Selectable)
Watts
25W, 29W, 33W or 36W
6x6 Dimmable Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4350lm
Watts
43W
6x6 Dimmable Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4350lm
Watts
43W
6x6 Dali Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4350lm
Watts
43W
6x6 Dali Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4350lm
Watts
43W
6x6 Casambi Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4350lm
Watts
43W
6x6 Casambi Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4350lm
Watts
43W
6x6 1-10V Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4095lm
Watts
39W
6x6 1-10V Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4095lm
Watts
39W
6x6 Proline Backlit Panel Select 27-42W Black 4000K
Temp.
4000K Natural White
Lumens
2800lm, 3400lm, 3500lm or 4000lm (Selectable)
Watts
27W, 33W, 36W or 42W
6x6 Proline Select Backlit Panel 27-42W White 5000K
Temp.
5000K Cool White
Lumens
2800lm, 3400lm, 3500lm or 4000lm (Selectable)
Watts
27W, 33W, 36W or 42W
6x6 Proline Select Backlit Panel 27-42W White 6000K
Temp.
6000K Cool White
Lumens
2800lm, 3400lm, 3500lm or 4000lm (Selectable)
Watts
27W, 33W, 36W or 42W
6x6 Proline Backlit Panel Phase-cut Dimmable White 6000K
Temp.
6000K Cool White
Lumens
4000lm
Watts
42W
6x6 Proline Backlit Panel Dali White 6000K
Temp.
6000K Cool White
Lumens
4000lm
Watts
42W
6x6 Proline Backlit Panel 1-10V Dimmable White 6000K
Temp.
6000K Cool White
Lumens
4000lm
Watts
42W
6x6 Proline Backlit Panel Casambi White 2700-6500K Tunable White
Temp.
2700K to 6500K (Tunable White)
Lumens
4000lm
Watts
45W
Specifications
R250 W5
Finish
White
Colour Temp
5000K Cool White
Watts
27W, 33W, 36W or 42W
Lumens
2800lm, 3400lm, 3500lm or 4000lm (Selectable)
Beam Angle
100°
Dimming / Control
Non-Dimmable
CRI
90
Lifespan
60,000hrs (L80 B10)
Ingress Protection
IP20
Height
32mm
Width
595mm
Length
595mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, SPCC, PS
Electrical Class
Class II - double insulated
Driver Output Current
Adjustable 700-1050mA
Driver
Included, Remote
Warranty
5 Year Warranty
