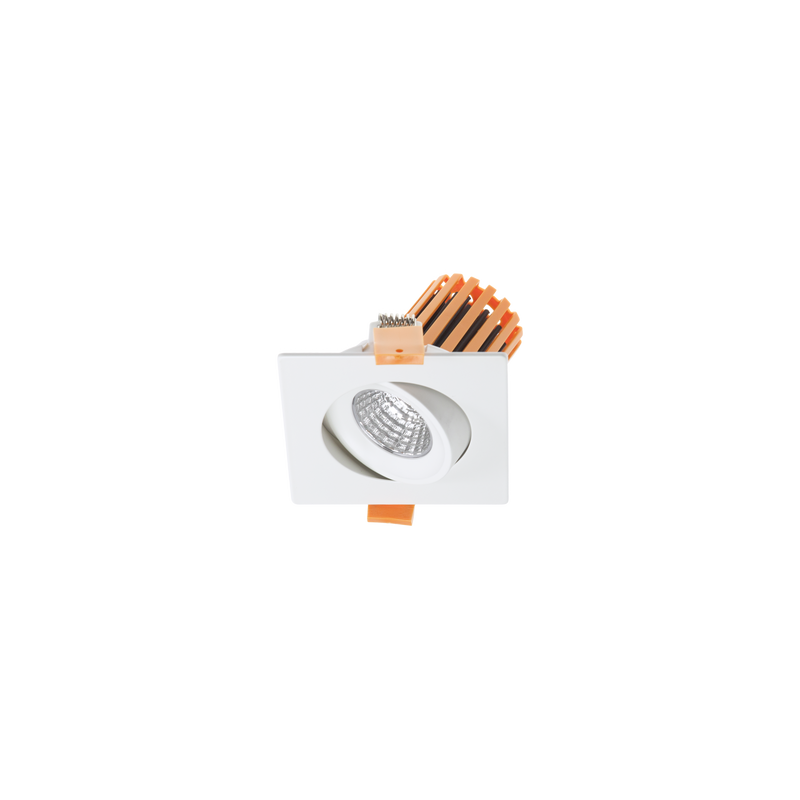

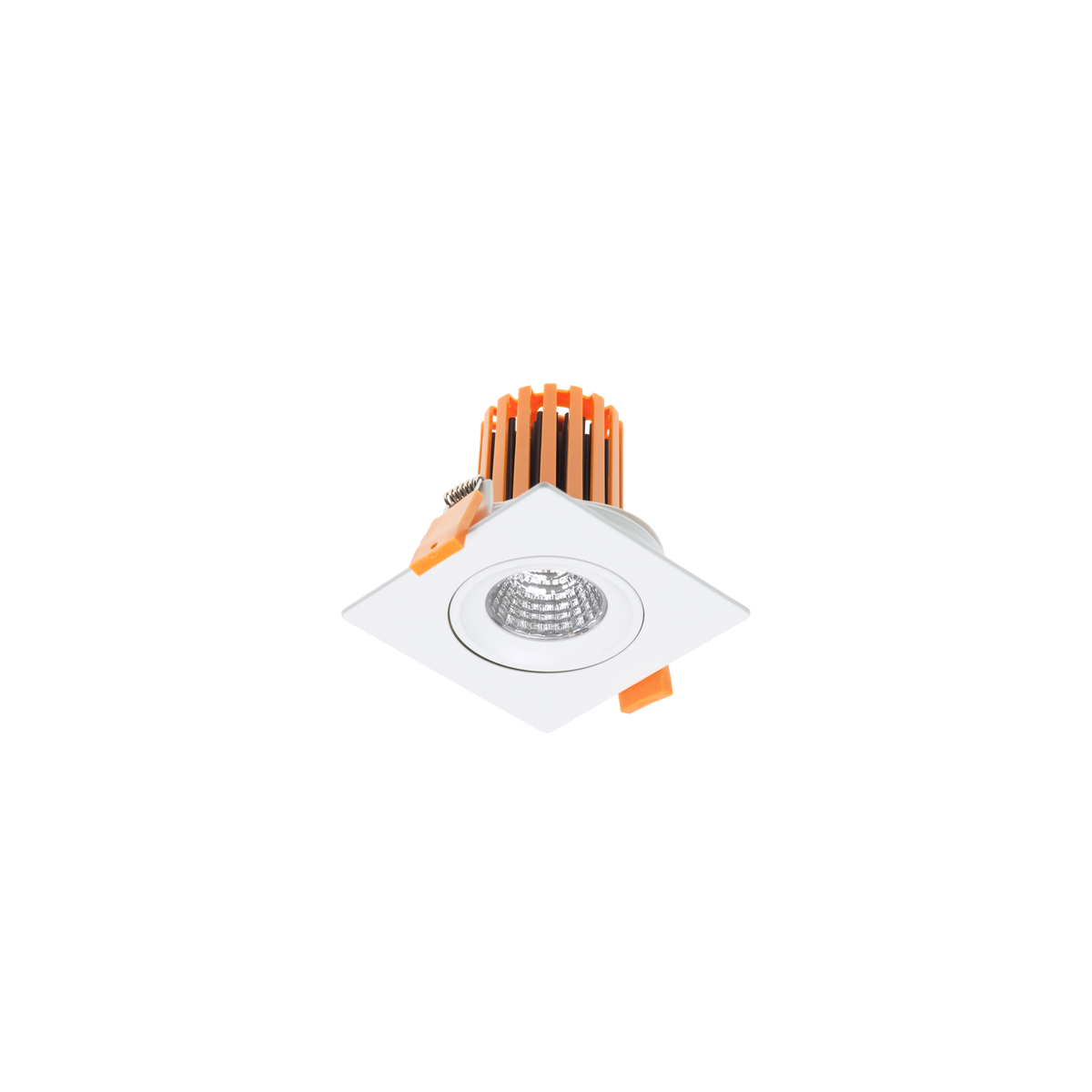

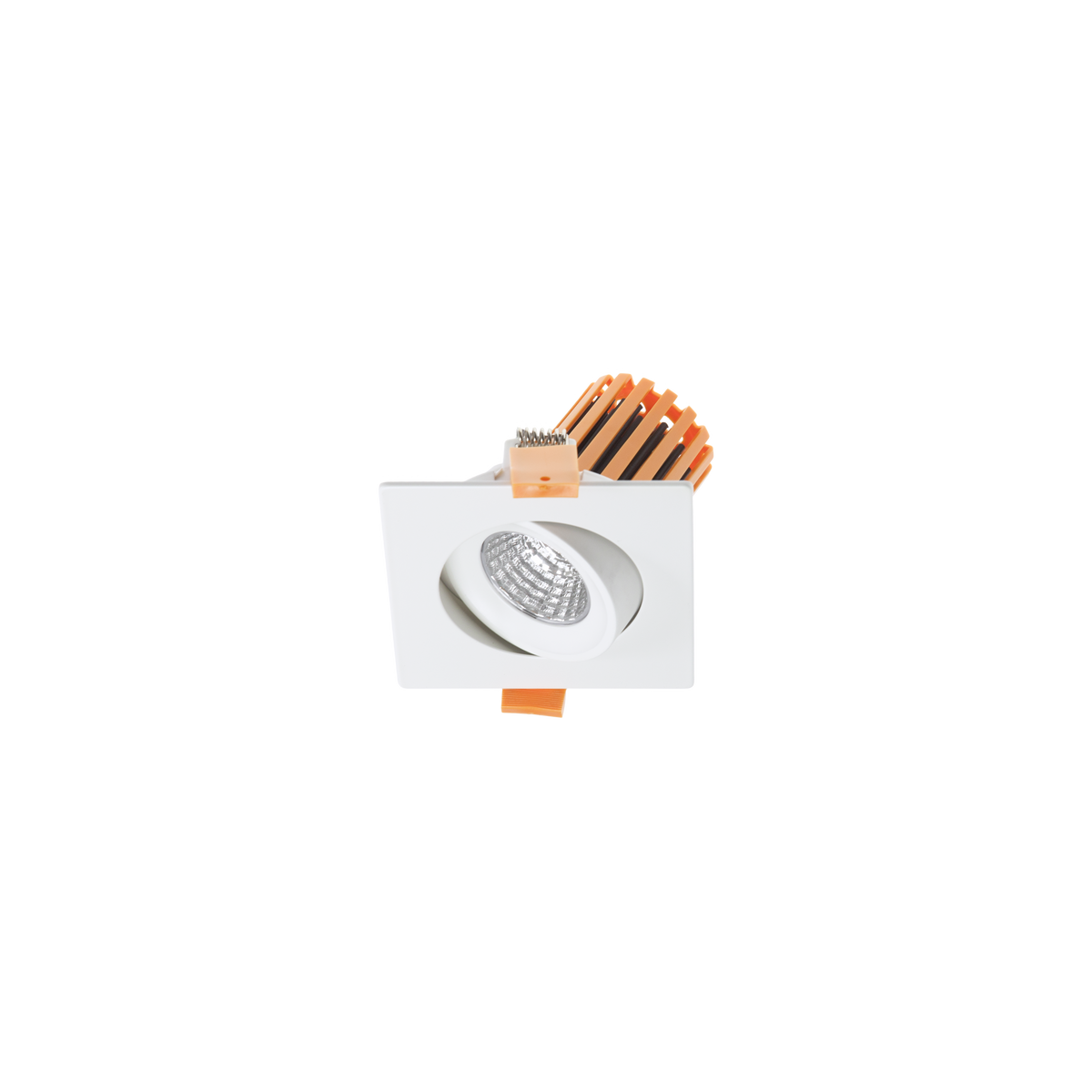

R677 W4K Smart Tilt Classic Square Downlight Kit White 4000K
Lumens
Watts
Tilt Angle
1000lm
12W
30°
View Options
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Select Downlights
R677
Smart Tilt Classic Square Downlight Kit White 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Cut out
82-84mm
Lumens
1000lm
Watts
12W
R677
Smart Tilt Classic Square Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82-84mm
Lumens
950lm
Watts
12W
R677
Smart Tilt Classic Square Downlight Kit Silver 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82-84mm
Lumens
950lm
Watts
12W
R677
Smart Tilt Classic Square Downlight Kit Brushed Chrome 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82-84mm
Lumens
830lm
Watts
12W
R677
Smart Tilt Classic Square Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82-84mm
Lumens
830lm
Watts
12W
Specifications
Cut Out
82-84mm
Finish
White
Colour Temp
4000K Natural White
Watts
12W
Lumens
1000lm
Beam Angle
60°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Tilt Angle
30°
Lifespan
105,000hrs (L80 B10)
Ingress Protection
IP44
RAL Colour
Halcyon White (close to RAL9016)
Height
79mm
Width
96mm
Length
96mm
Binning
SDCM 5
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Patented PC Heat Shield
Electrical Class
Class II
Driver Output Current
260mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
