R730 WCCTCAS
R730
- Checking stock...

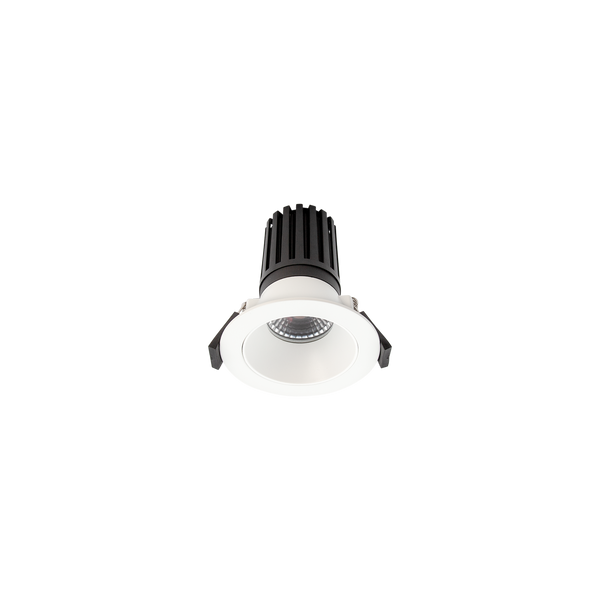

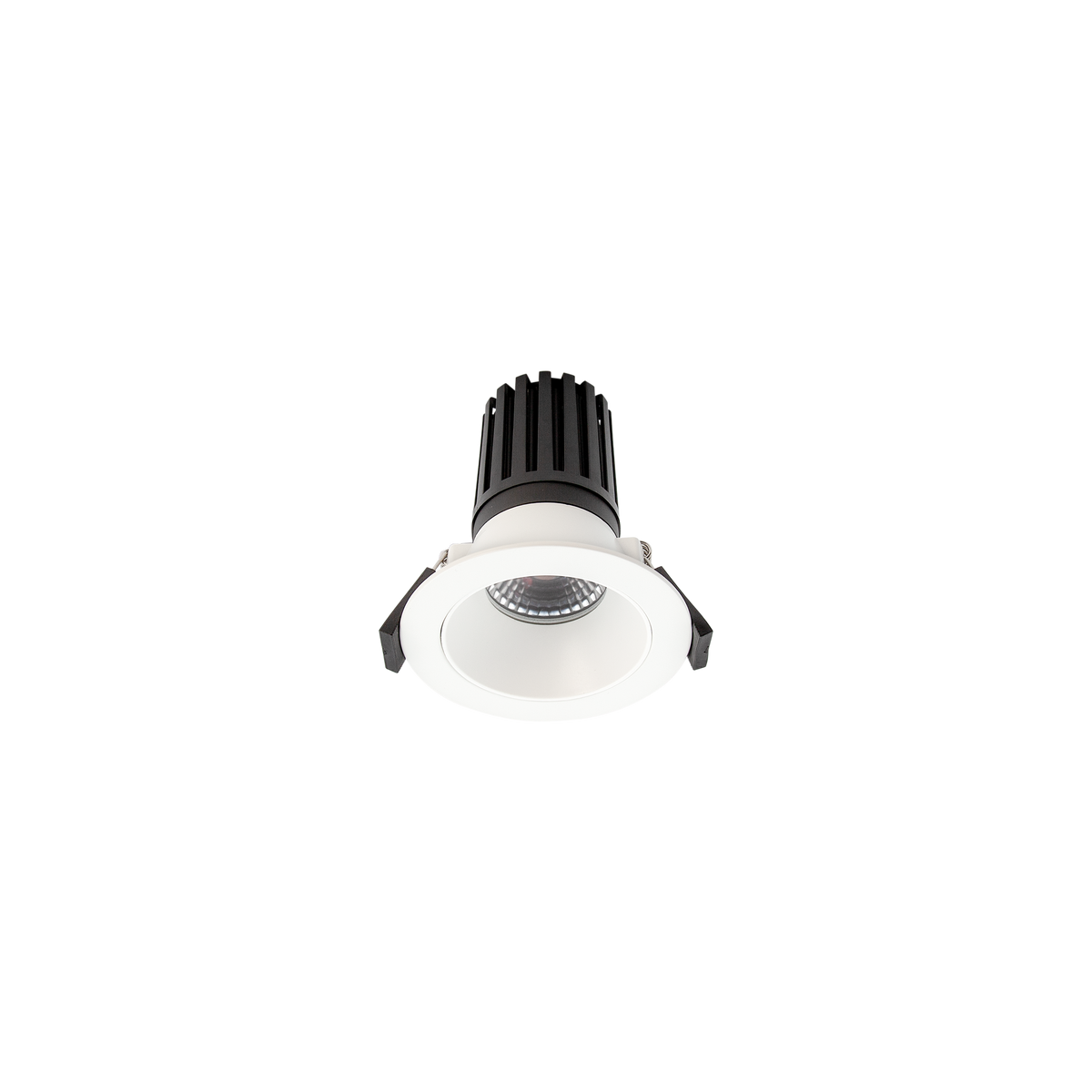

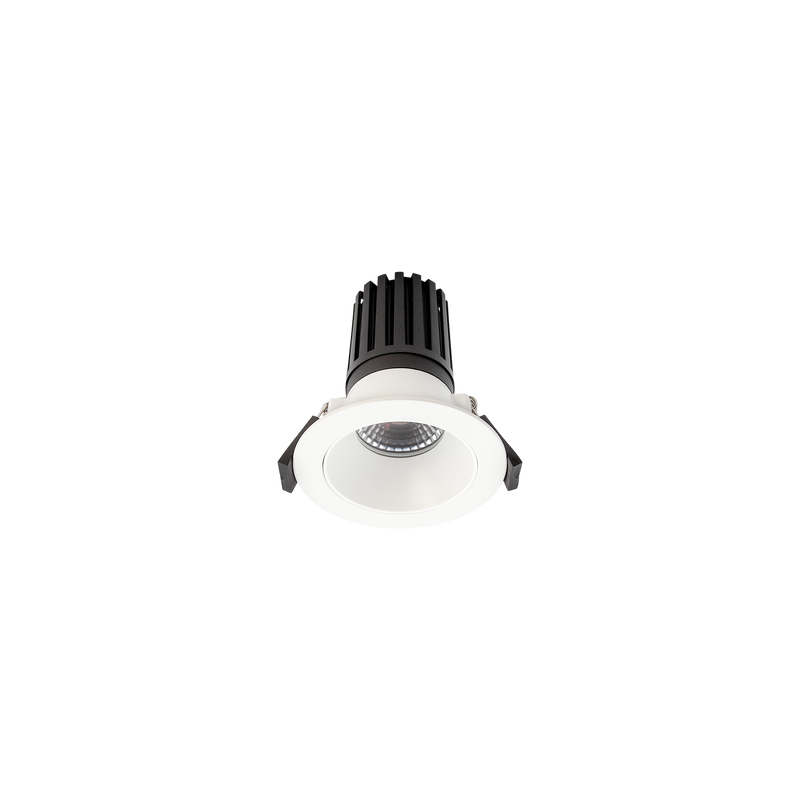

R730 WCCTCAS Design Standard Downlight Kit White 2700-6500K Tunable White Casambi
Lumens
Watts
880lm (See Spec Sheet)
10.5W
View Options
Select Downlights
R730
Design Standard Downlight Kit White 2700-6500K Tunable White Casambi
Temp.
2700K to 6500K (Tunable White)
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
880lm (See Spec Sheet)
Watts
10.5W
R730
Design Standard Small Downlight Kit White 2700K
Temp.
2700K Warm White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
800lm
Watts
9.5W
R730
Design Standard Small Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
900lm
Watts
9.5W
R730
Design Standard Small Downlight Kit White 4000K
Temp.
4000K Natural White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
920lm
Watts
9.5W
R730
Design Standard Small Downlight Kit Black 2700K
Temp.
2700K Warm White
Cut out
72-82mm (suitable for retrofit applications)
Lumens
830lm
Watts
9.5W
R730
Design Standard Small Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
860lm
Watts
9.5W
R730
Design Standard Small Downlight Kit Black 4000K
Temp.
4000K Natural White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
930lm
Watts
9.5W
R730
Design Standard Downlight Kit Black 2700-6500K Tunable White Casambi
Temp.
2700K to 6500K (Tunable White)
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
820lm (See Spec Sheet)
Watts
10.5W
Specifications
Cut Out
72-82mm (Suitable for Retrofit Applications)
Finish
White
Colour Temp
2700K to 6500K (Tunable White)
Watts
10.5W
Lumens
880lm (See Spec Sheet)
Beam Angle
50°
Dimming / Control
Casambi
CRI
90
Lifespan
55,000hrs (L80)
Ingress Protection
IP54
RAL Colour
Halcyon White (close to RAL9016)
Diameter
93mm
Height
104mm
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, ADC12, PC
Electrical Class
Class II
Driver Output Current
230mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
