R730
- Checking stock...
Configure your R730 4 options
- Copper (selected)
- White
- Stainless Steel
- Black

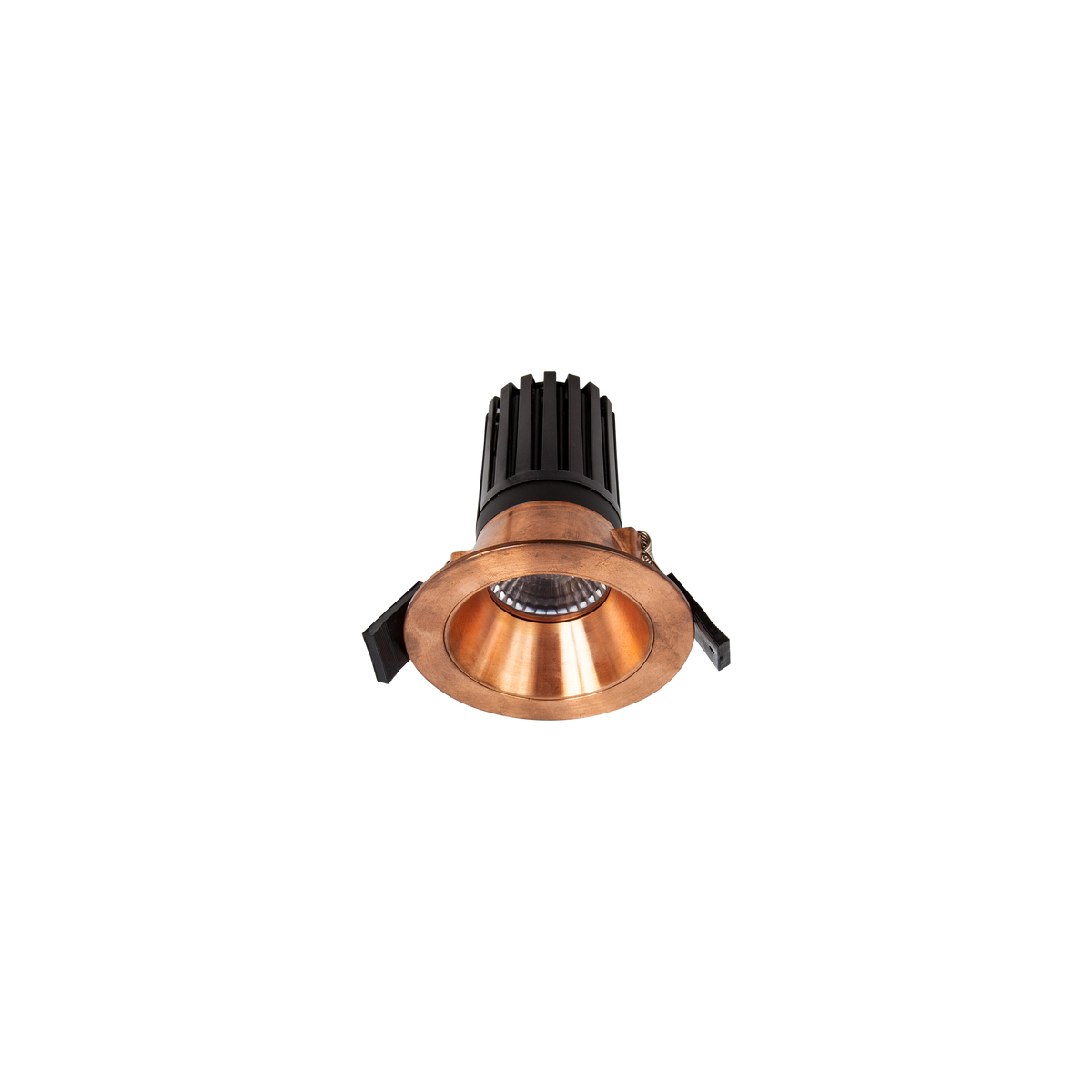

R730 XCO3K Exterior Design Standard Downlight Kit Copper 3000K
Lumens
Watts
770lm
9.5W
DCC230-DX-9W 230mA 9W Dimmable Constant Current DX Series Driver
Watts
4.6W-9W
Watts
4.6W-9W
Select Downlights
Exterior Design Standard Downlight Kit Copper 3000K
Temp.
3000K Warm White
Cut out
72-82mm
Lumens
770lm
Watts
9.5W

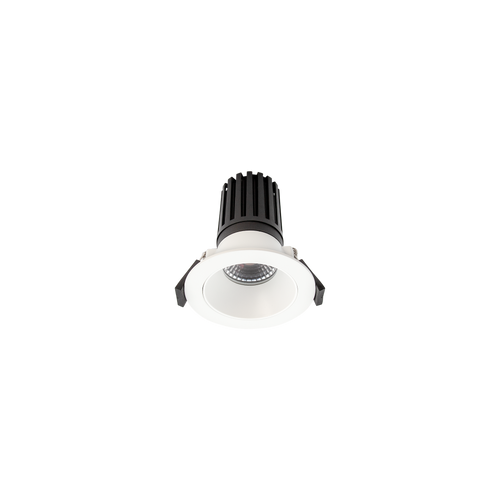

Exterior Design Standard Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
72-82mm
Lumens
840lm
Watts
9.5W

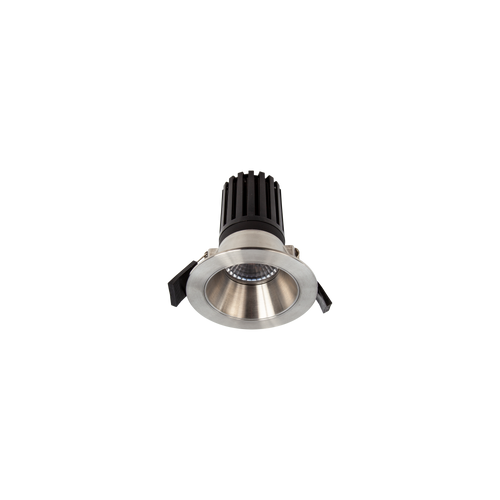

Exterior Design Standard Downlight Kit Brushed 316 Stainless Steel 3K
Temp.
3000K Warm White
Cut out
72-82mm
Lumens
770lm
Watts
9.5W

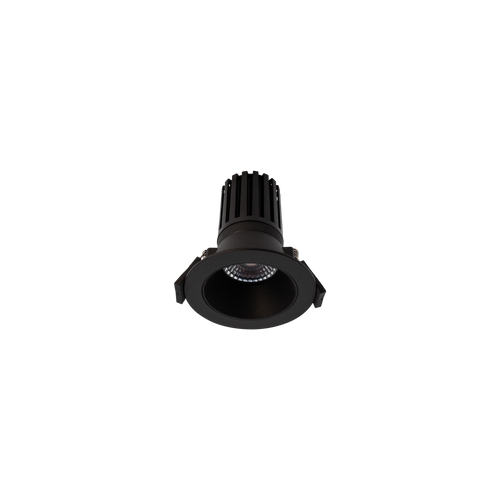

Exterior Design Standard Downlight Kit Black
Temp.
3000K Warm White
Cut out
72-82mm
Lumens
830lm
Watts
9.5W
Specifications
R730 XCO3K
Cut Out
72-82mm
Finish
Copper
Colour Temp
3000K Warm White
Watts
9.5W
Lumens
770lm
Beam Angle
50°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
105,000hrs (L80 B10)
Ingress Protection
IP65 (front face only)
Diameter
93mm
Height
104mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Copper
Electrical Class
Class II
Driver Output Current
230mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC230-DX-9W
Watts
4.6W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Finish
Black
Height
28mm
Width
45mm
Length
120mm
Classification
Suitable for Installation Under Insulation
Resources
