R750
- Checking stock...
Configure your R750 9 options
- White (selected)
- Black

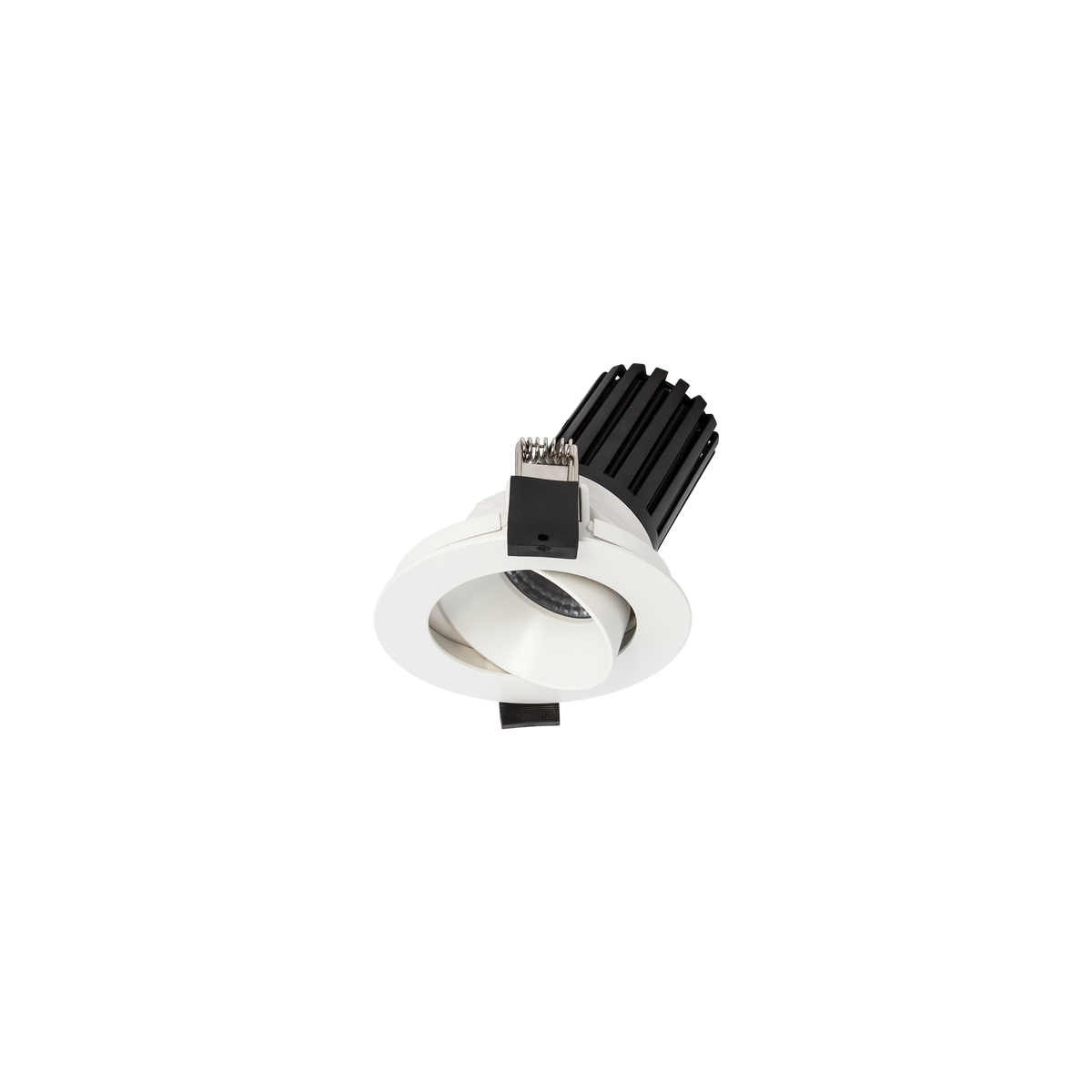

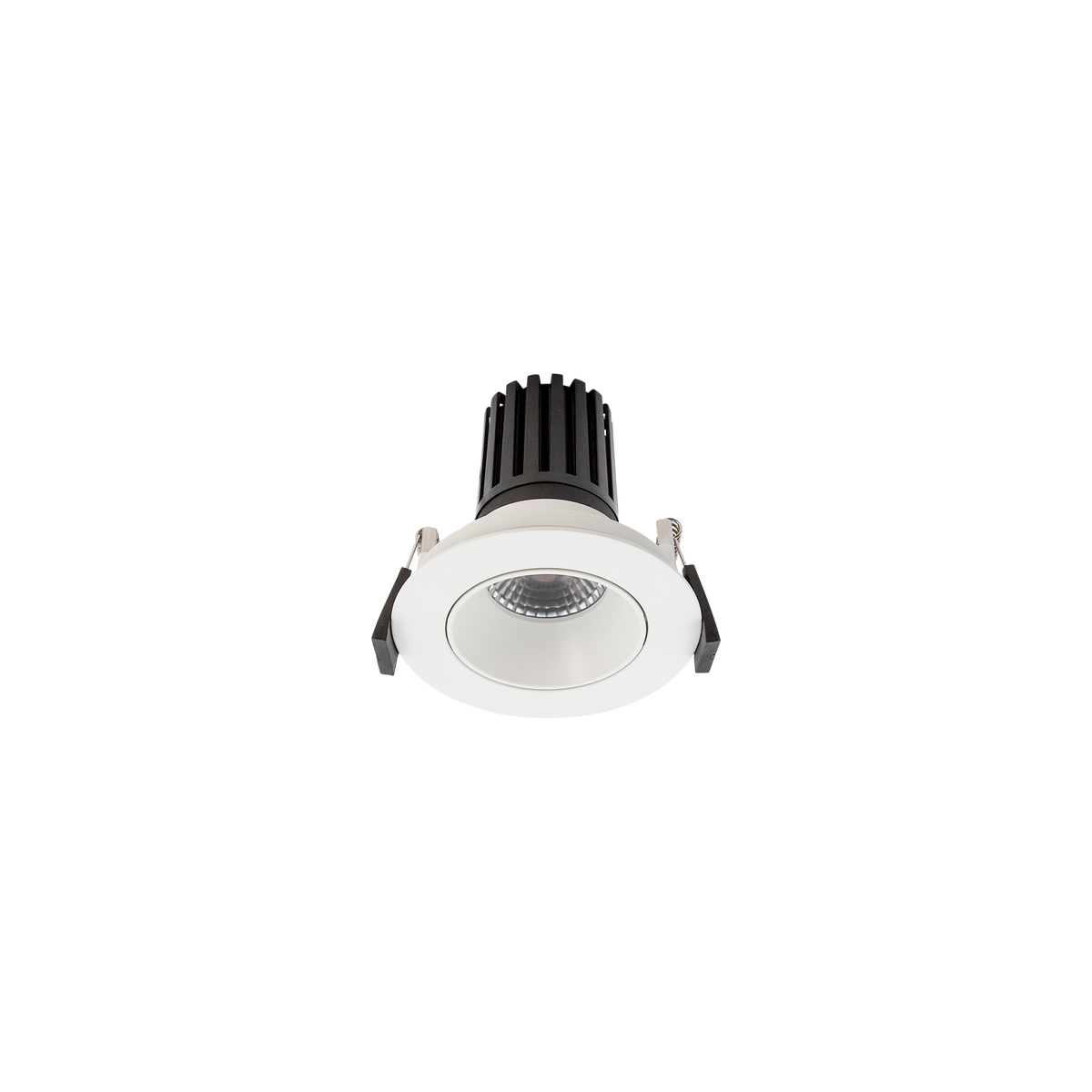

R750 W4K2 Design Standard Tilt Downlight Kit White 4000K
Lumens
Watts
Tilt Angle
900lm
9.5W
32°
DCC230-DX-9W 230mA 9W Dimmable Constant Current DX Series Driver
Watts
4.6W-9W
Watts
4.6W-9W
-
R750 Adaptor Plate White
Select Downlights
Design Standard Tilt Downlight Kit White 2700K
Temp.
2700K Warm White
Tilt Angle
32°
Cut out
85-92mm
Lumens
820lm
Watts
9.5W
Design Standard Tilt Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
85-92mm
Lumens
900lm
Watts
9.5W
Design Standard Tilt Downlight Kit White 4000K
Temp.
4000K Natural White
Tilt Angle
32°
Cut out
85-92mm
Lumens
900lm
Watts
9.5W
Design Standard Tilt Downlight White 2700-6500K Tunable White Casambi
Temp.
2700K to 6500K (Tunable White)
Tilt Angle
32°
Cut out
92mm
Lumens
880lm (See Spec Sheet)
Watts
10.5W
Design Standard Tilt Downlight Kit White 3000K w/ Plug
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
85-92mm
Lumens
900lm
Watts
9.5W
Design Standard Tilt Downlight Kit Black 2700K
Temp.
2700K Warm White
Tilt Angle
32°
Cut out
85-92mm
Lumens
760lm
Watts
9.5W
Design Standard Tilt Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
85-92mm
Lumens
840lm
Watts
9.5W
Design Standard Tilt Downlight Kit Black 4000K
Temp.
4000K Natural White
Tilt Angle
32°
Cut out
85-92mm
Lumens
850lm
Watts
9.5W
Design Standard Tilt Downlight Black 2700-6500K Tunable White Casambi
Temp.
2700K to 6500K (Tunable White)
Tilt Angle
32°
Cut out
85-92mm
Lumens
820lm (See Spec Sheet)
Watts
10.5W
Specifications
R750 W4K2
Cut Out
85-92mm
Finish
White
Colour Temp
4000K Natural White
Watts
9.5W
Lumens
900lm
Beam Angle
50°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Tilt Angle
32°
Lifespan
105,000hrs (L80 B10)
Ingress Protection
IP54
Diameter
100mm
Height
101mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Output Current
230mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC230-DX-9W
Watts
4.6W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Finish
Black
Height
28mm
Width
45mm
Length
120mm
Classification
Suitable for Installation Under Insulation
