R754
- Checking stock...
Configure your R754 3 options
- White — not available in this configuration
- Brushed Chrome (selected)

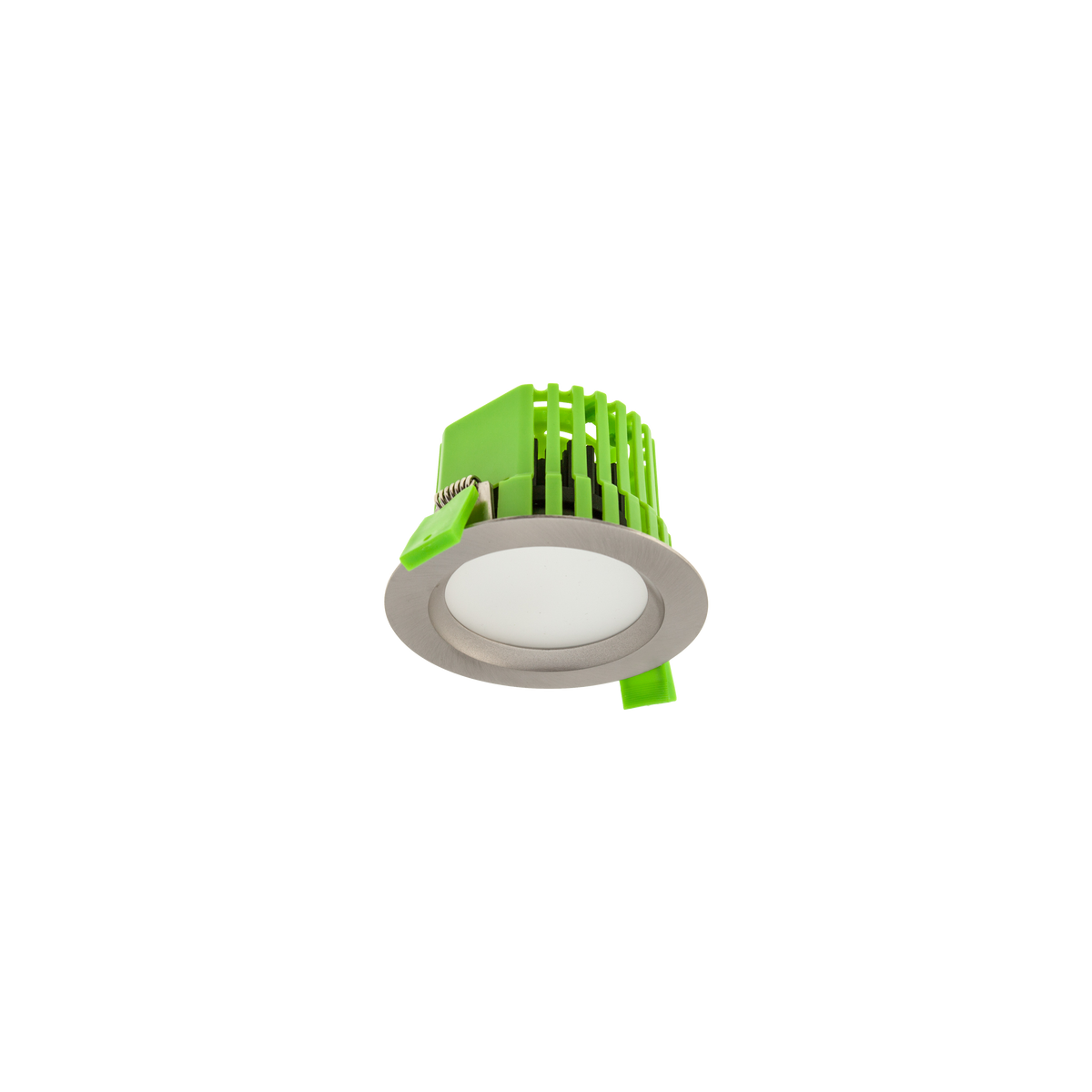

R754 KBCWL 9W LED FIXED DOWNLIGHT KIT Brushed Chrome 3000K
Lumens
Watts
750lm
9W
DCC350-12W 350mA 12W Constant Current Non-dimmable Driver
Watts
1W-12W
Watts
1W-12W
Select Downlight
9W Standard Kit White 4K
Temp.
3000K Warm White
Cut out
90mm
Lumens
750lm
Watts
9W
9W Standard Kit White 4000K
Temp.
4000K Natural White
Cut out
90mm
Lumens
750lm
Watts
9W
9W LED FIXED DOWNLIGHT KIT Brushed Chrome 3000K
Temp.
3000K Warm White
Cut out
90mm
Lumens
750lm
Watts
9W
Specifications
R754 KBCWL
Cut Out
90mm
Finish
Brushed Chrome
Colour Temp
3000K Warm White
Watts
9W
Lumens
750lm
CRI
80
Ingress Protection
IP44
Diameter
104mm
Classification
IC
Height Clearance to Building Elements
50mm
Side Clearance to Building Elements
50mm
Material
Die Cast Aluminium
Driver Output Current
350mA
Driver
Included, Remote
Warranty
Clearance 1 Year Warranty
Specifications
DCC350-12W
Watts
1W-12W
Input
220-240V 50/60Hz
Dimming / Control
Non-Dimmable
Ingress Protection
IP20
Height
22mm
Width
39mm
Length
98mm
Classification
Must be installed above insulation
Resources
