R835
- Checking stock...
Configure your R835 3 options

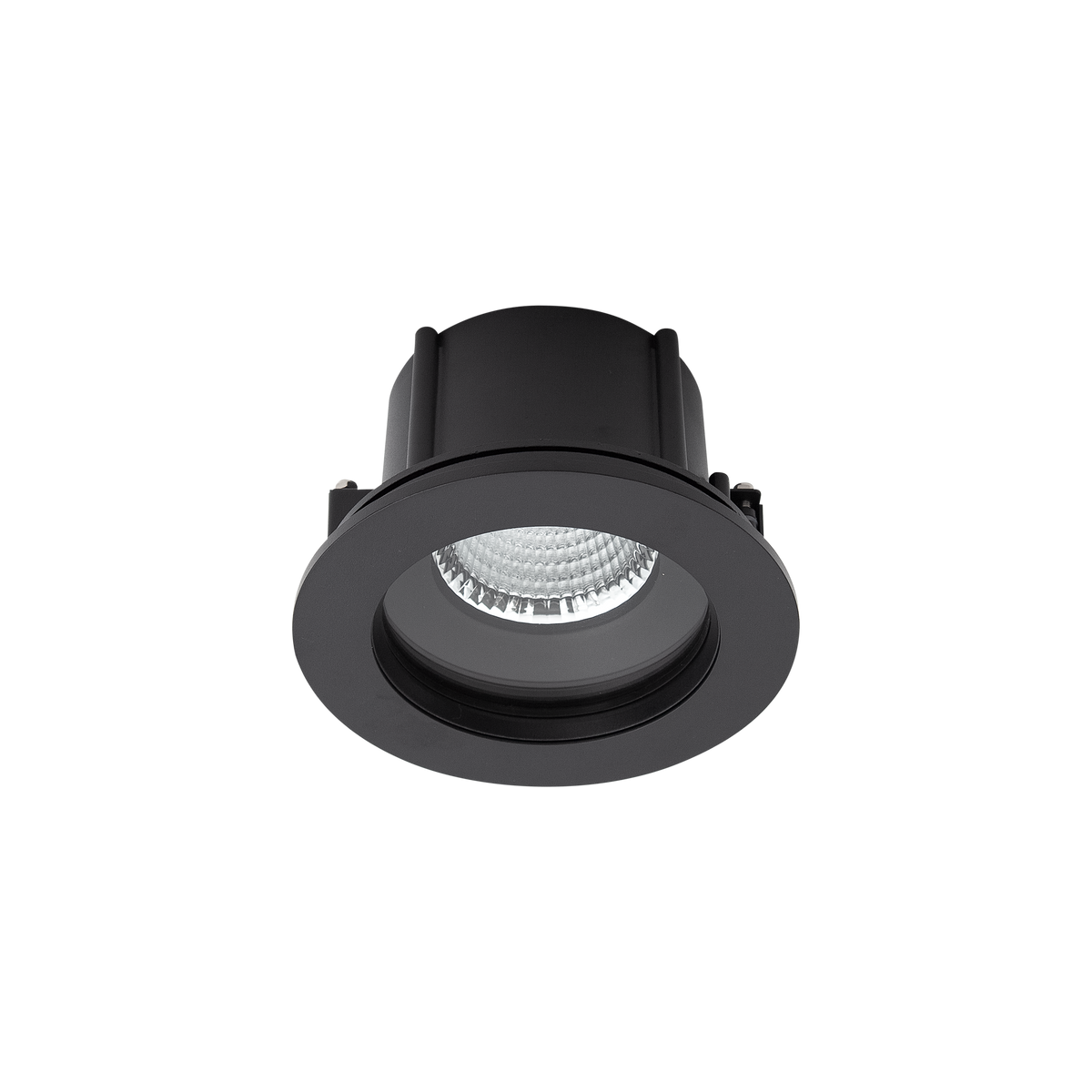

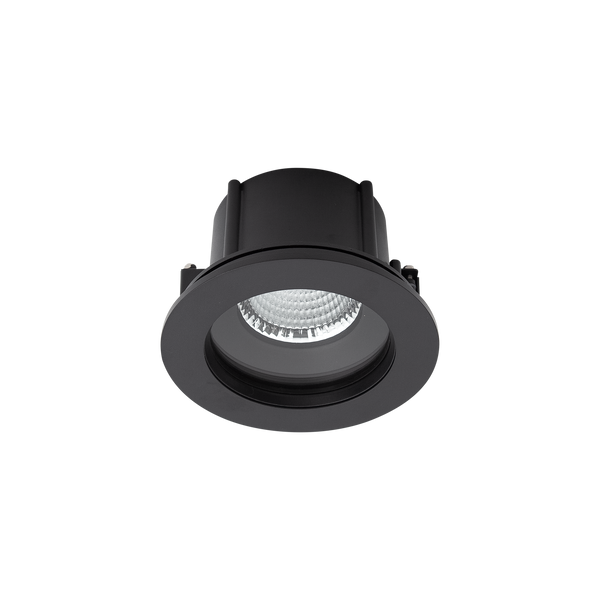

R835 B4 Exterior Round IP66 Large Downlight Black 4000K
Lumens
Watts
1795lm (See Spec Sheet)
12.3W or 17.5W
Not included
Please select from options
-
10° Reflector Only for R835
-
20° Reflector for R835 & R868
-
70° Reflector Only for R835
-
Frosted Glass Cover for R835
-
Honeycomb Glare Reducer for R835
-
Plastic Installation Housing for Concrete Castings for R835
Select Downlights
Exterior Round IP66 Large Downlight Black 4000K
Temp.
4000K Natural White
Cut out
150mm
Lumens
1795lm (See Spec Sheet)
Watts
12.3W or 17.5W

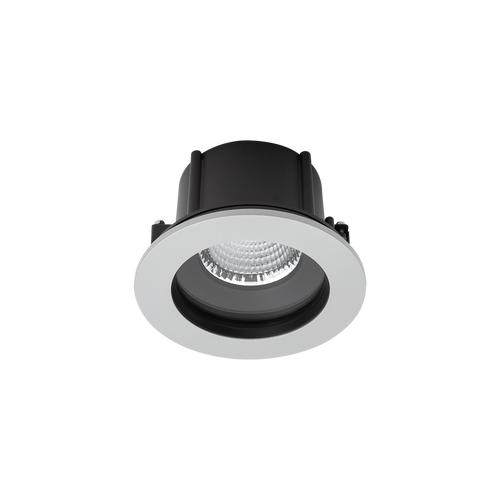

Exterior Round IP66 Large Downlight Silver 4000K
Temp.
4000K Natural White
Cut out
150mm
Lumens
1795lm (See Spec Sheet)
Watts
12.3W or 17.5W

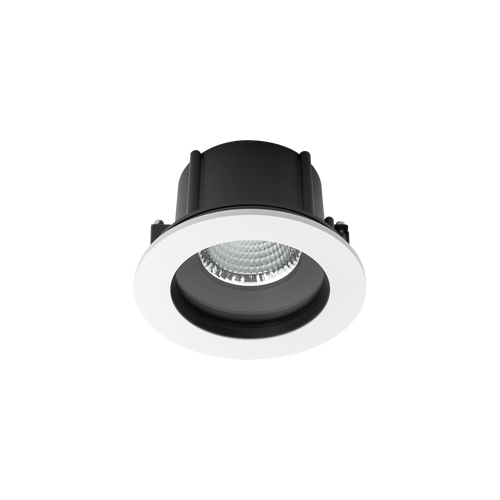

Exterior Round IP66 Large Downlight White 4000K
Temp.
4000K Natural White
Cut out
150mm
Lumens
1795lm (See Spec Sheet)
Watts
12.3W or 17.5W
Select driver
driver sold separately. Please select below.
Dimmable
DCC500-DX-20W
500mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Non Dimmable

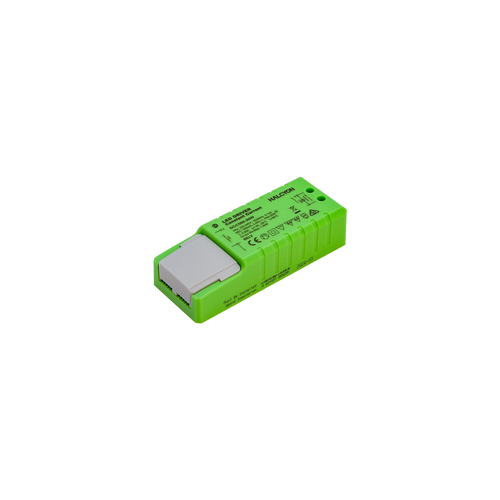

DCC500-20W
500mA 20W Constant Current Non-dimmable Driver
Watts
1W-20W
Specifications
R835 B4
Cut Out
150mm
Finish
Black
Colour Temp
4000K Natural White
Watts
12.3W or 17.5W
Lumens
1795lm (See Spec Sheet)
Beam Angle
40°
Dimming / Control
Dimmable
CRI
90
Lifespan
50,000hrs (L70)
Ingress Protection
IP66
Diameter
165mm
Height
94mm
Classification
Non IC
Height Clearance to Building Elements
100mm
Side Clearance to Building Elements
100mm
Material
Aluminium, Safety Glass
Electrical Class
Class III
Driver Output Current
500mA
Driver
Not included, Driver sold separately
Impact Rating
IK08
Warranty
5 Year Warranty
Specifications
None
Resources
