X61
- Custom Build - Request Availability
Configure your X61 28 options

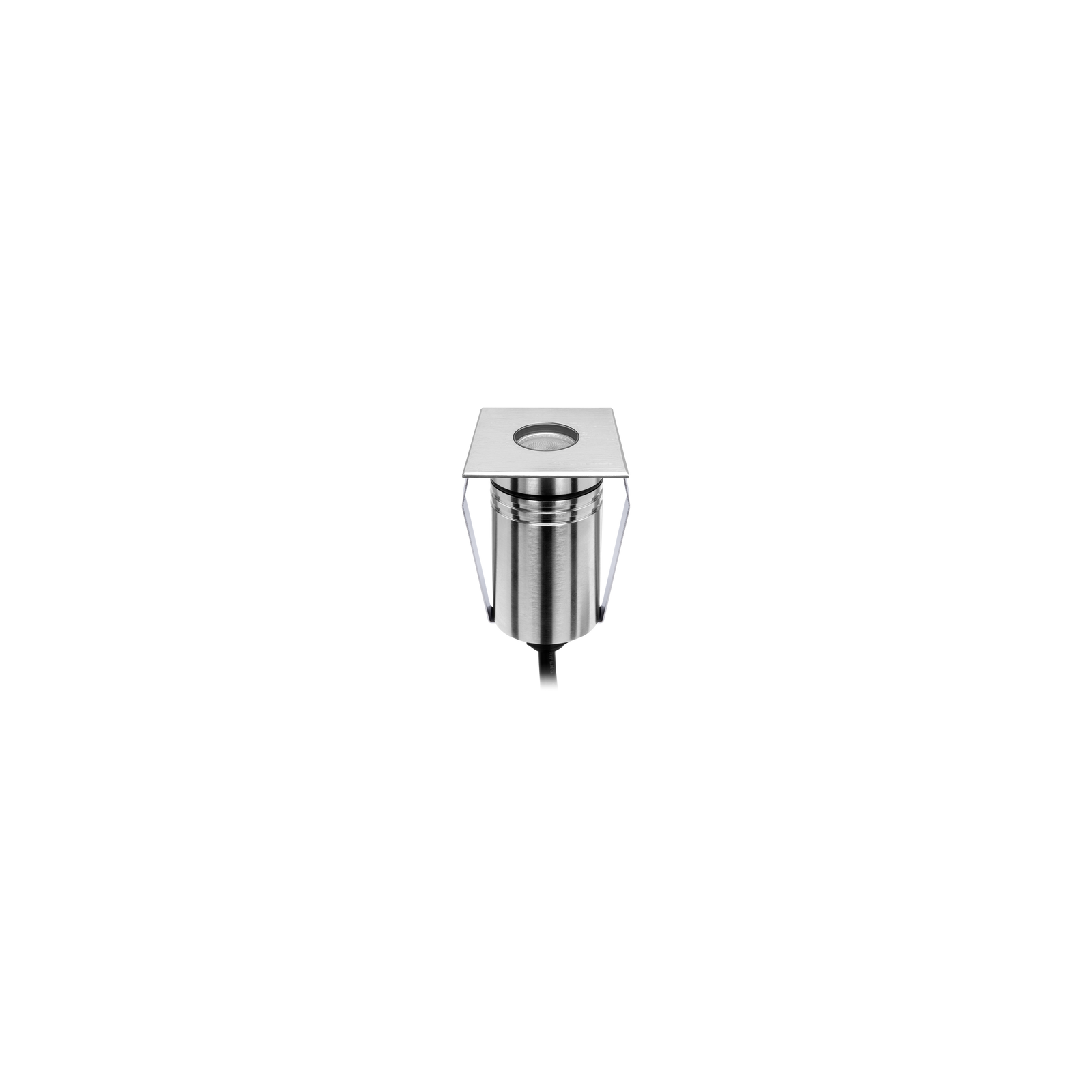

X61-STS3K-D-ASY Exterior Recessed Squ Standard Up or Down Dimmable 316 STS 3K Asy
Lumens
Watts
170lm
2.5W
Not included
Please select from options
-
X55-X62 In-wall Installation Sleeve
-
X55-X62 Inground Installation Housing
-
Exterior Feed Cable - 1M
-
Exterior Feed Cable - 10M
-
Exterior Extension Loop Cable - 1.5M
-
Exterior Extension Loop Cable - 2M
-
Exterior Extension Loop Cable - 3M
-
Exterior Extension Loop Cable - 5M
-
Exterior Extension Loop Cable - 10M
-
Two Way Spot Socket
-
Three Way Spot Socket
Select Multi-Use Effect
Exterior Recessed Squ Std Up or Down Dim 316 Stainless Steel 27K 60°
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Std Up or Down Dim 316 Stainless Steel 27K 19°
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Std Up or Down Dim 316 Stainless Steel 27K 36°
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Std Up or Down Dim 316 Stainless Steel 27K Asym
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down Dimmable 316 STS 3K 19°
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down Dimmable 316 STS 3K 36°
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down Dimmable 316 STS 3K 60°
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down Dimmable 316 STS 3K Asy
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down Dimmable 316 STS 4K 19°
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down Dimmable 316 STS 4K 36°
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down Dimmable 316 STS 4K 60°
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down Dimmable 316 STS 4K Asy
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Square Standard Up or Down 316 STS 2700K 19°
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Square Standard Up or Down 316 STS 2700K 36°
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Square Standard Up or Down 316 STS 2700K 60°
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Square Standard Up or Down 316 STS 2700K Asy
Temp.
2700K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down 316 Stainless Steel 3K 19°
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down 316 Stainless Steel 3K 36°
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down 316 Stainless Steel 3K 60°
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down 316 Stainless Steel 3K Asy
Temp.
3000K Warm White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down 316 Stainless Steel 4K 60°
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down 316 Stainless Steel 4K 19°
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down 316 Stainless Steel 4K 36°
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down 316 Stainless Steel 4K Asy
Temp.
4000K Natural White
Cut out
Ø43mm
Lumens
170lm
Watts
2.5W
Exterior Recessed Squ Standard Up or Down 316 Stainless Steel RGBW 60°
Temp.
RGBW
Cut out
Ø43mm
Lumens
Ambient light source
Watts
2.5W
Exterior Recessed Squ Standard Up or Down 316 Stainless Steel RGBW 19°
Temp.
RGBW
Cut out
Ø43mm
Lumens
Ambient light source
Watts
2.5W
Exterior Recessed Squ Standard Up or Down 316 Stainless Steel RGBW 36°
Temp.
RGBW
Cut out
Ø43mm
Lumens
Ambient light source
Watts
2.5W
Exterior Recessed Standard Up or Down 316 Stainless Steel RGBW Asy
Temp.
RGBW
Cut out
Ø43mm
Lumens
Ambient light source
Watts
2.5W
Select driver
driver sold separately. Please select below.
Dimmable
DCV24-D-25W
24V 25W Constant Voltage Phase-cut Dimmable Driver
Watts
9.6W-25W
DCV24-D-50W
24V 50W Constant Voltage Phase-cut Dimmable Driver
Watts
12W-50W
DCV24-D-100W
24V 100W Constant Voltage Phase-cut Dimmable Driver
Watts
10W-100W
DCV24-D-200W-IP
IP67 24V 200W Constant Voltage Phase-cut Dimmable Driver
Watts
10W-200W
Specifications
X61-STS3K-D-ASY
Cut Out
Ø43mm
Finish
Stainless Steel
Colour Temp
3000K Warm White
Watts
2.5W
Lumens
170lm
Beam Angle
20x40°
Input
24V DC (Constant Voltage)
Dimming / Control
TRIAC (phase-cut) dimming only, not compatible with PWM
CRI
80
Lifespan
40,000hrs (L80 B10)
Ingress Protection
IP67
Height
82mm
Width
55mm
Length
55mm
Classification
IC-F
Material
316 Stainless Steel
Electrical Class
Class III
Driver
Not included, Driver sold separately
Impact Rating
IK10
Installation Note
Pre-wired 500mm feed cable and quick connect IP67 plug. See accessories for compatible extensions/sockets.
Warranty
5 Year Warranty
