R252
- Checking stock...
Configure your R252 14 options
- White (selected)
- Black — not available in this configuration
R252 WCCTCAS 12x6 Proline Backlit Panel Casambi White 2700-6500K Tunable White
Lumens
Watts
6200lm
52W
-
12x6 Surface Mount Kit White
-
12x6 Recessed Frame Kit White
-
12x3 & 12x6 Suspension Kit Stainless Steel
-
Cable Restraint 300mm (4 pack)
Select Panel

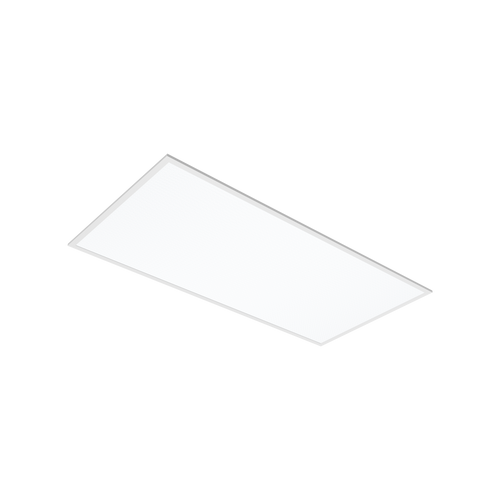

12x6 Standard Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
3300lm, 4250lm, 4880lm or 5520lm (Selectable)
Watts
26W, 34W, 40W or 46W
12x6 Standard Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
3300lm, 4250lm, 4880lm or 5520lm (Selectable)
Watts
26W, 34W, 40W or 46W
12x6 Dimmable Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4880lm
Watts
40W
12x6 Dimmable Proline Panel V2 - 4K/57K White
Temp.
4000K, 5000K or 5700K (Selectable)
Lumens
4880lm
Watts
40W
12x6 Dali Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4760lm, 5160lm, 5480lm, 5870lm, 6290lm, 6600lm or 6980lm (Selectable)
Watts
39-60W
12x6 Dali Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4760lm, 5160lm, 5480lm, 5870lm, 6290lm, 6600lm or 6980lm (Selectable)
Watts
39-60W
12x6 High Output Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
6980lm
Watts
60W
12x6 High Output Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
6980lm
Watts
60W
12x6 Casambi Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
5520lm
Watts
46W
12x6 Casambi Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
5520lm
Watts
46W
12x6 1-10V Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
6440lm
Watts
54W
12x6 1-10V Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
6440lm
Watts
54W

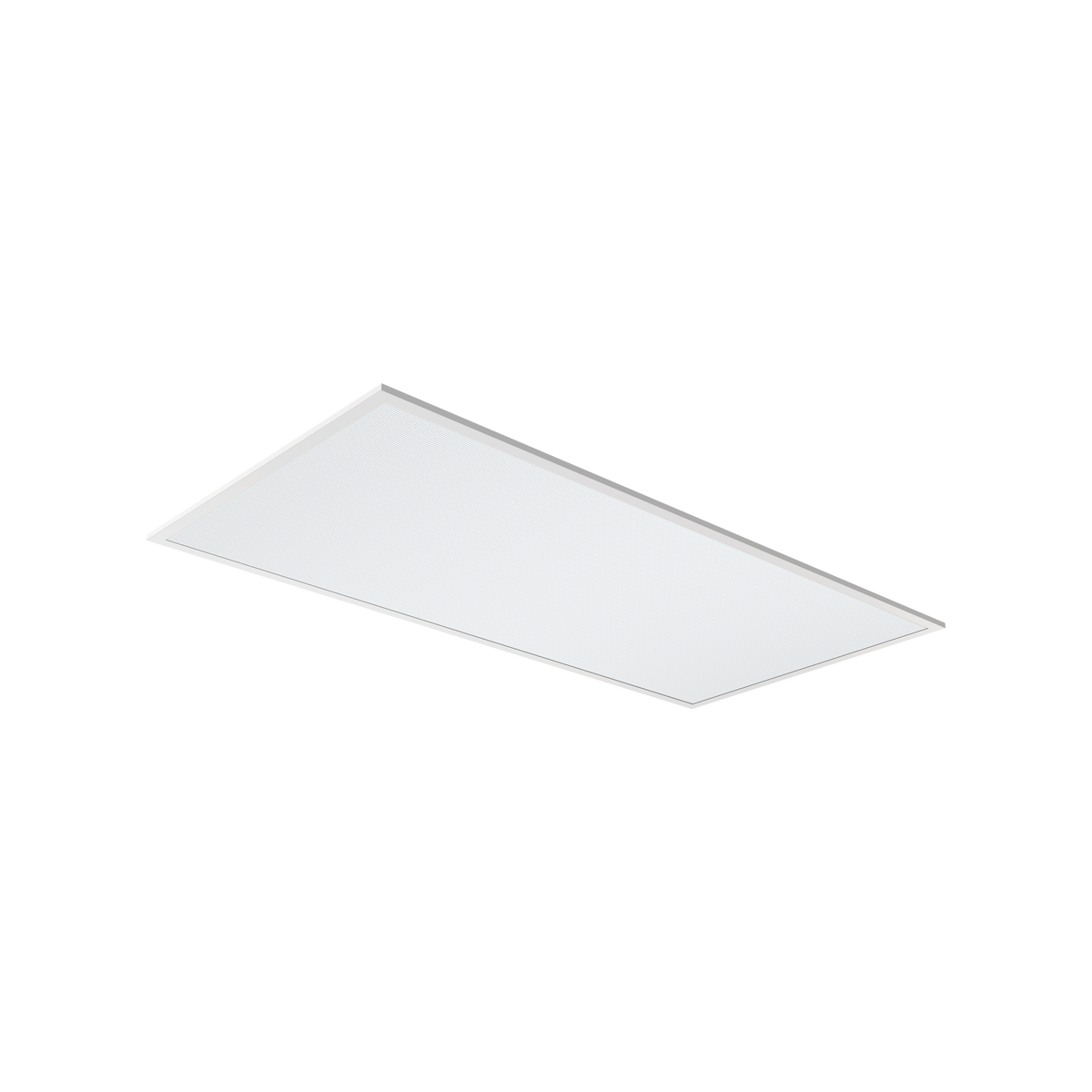

12x6 Proline Backlit Panel Casambi White 2700-6500K Tunable White
Temp.
2700K to 6500K (Tunable White)
Lumens
6200lm
Watts
52W

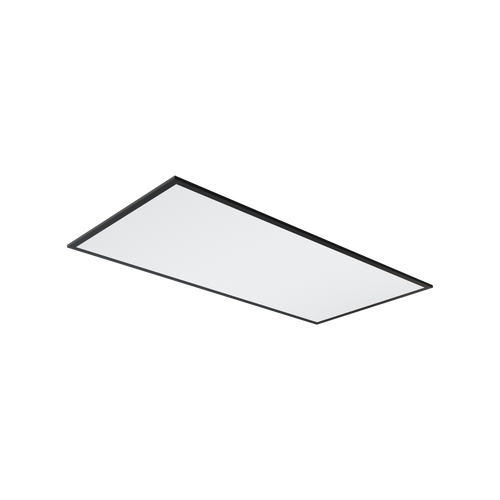

12x6 Proline Select Backlit Panel 40-56W Black 4000K
Temp.
4000K Natural White
Lumens
4700lm, 5300lm, 5600lm or 6200lm (Selectable)
Watts
40W, 46W, 50W or 56W
Specifications
R252 WCCTCAS
Finish
White
Colour Temp
2700K to 6500K (Tunable White)
Watts
52W
Lumens
6200lm
Beam Angle
90°
Input
220-240V 50/60Hz
Dimming / Control
Casambi
CRI
90
Lifespan
60,000hrs (L80 B10)
Ingress Protection
IP20
Height
32mm
Width
595mm
Length
1195mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F, Driver must be installed above insulation
Electrical Class
Class II
Driver Output Current
1200mA
Driver
Included, Remote
Ambient Operating Temperature
-20..+40°C
Installation Note
Pre-wired with flex & plug unless specified otherwise
Warranty
5 Year Warranty
