R602
- Checking stock...
Configure your R602 5 options
- White
- Black (selected)

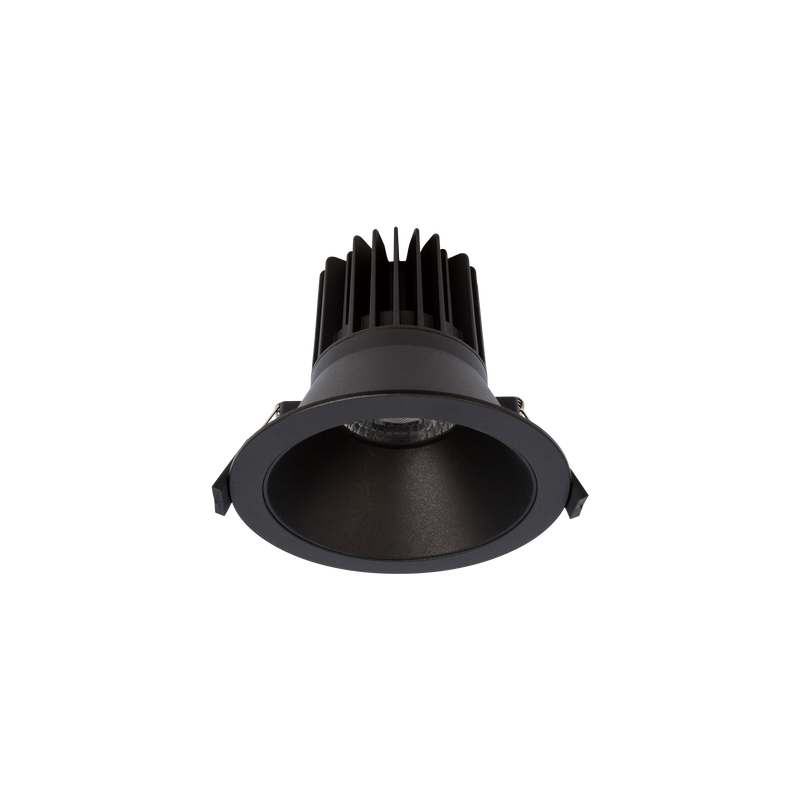

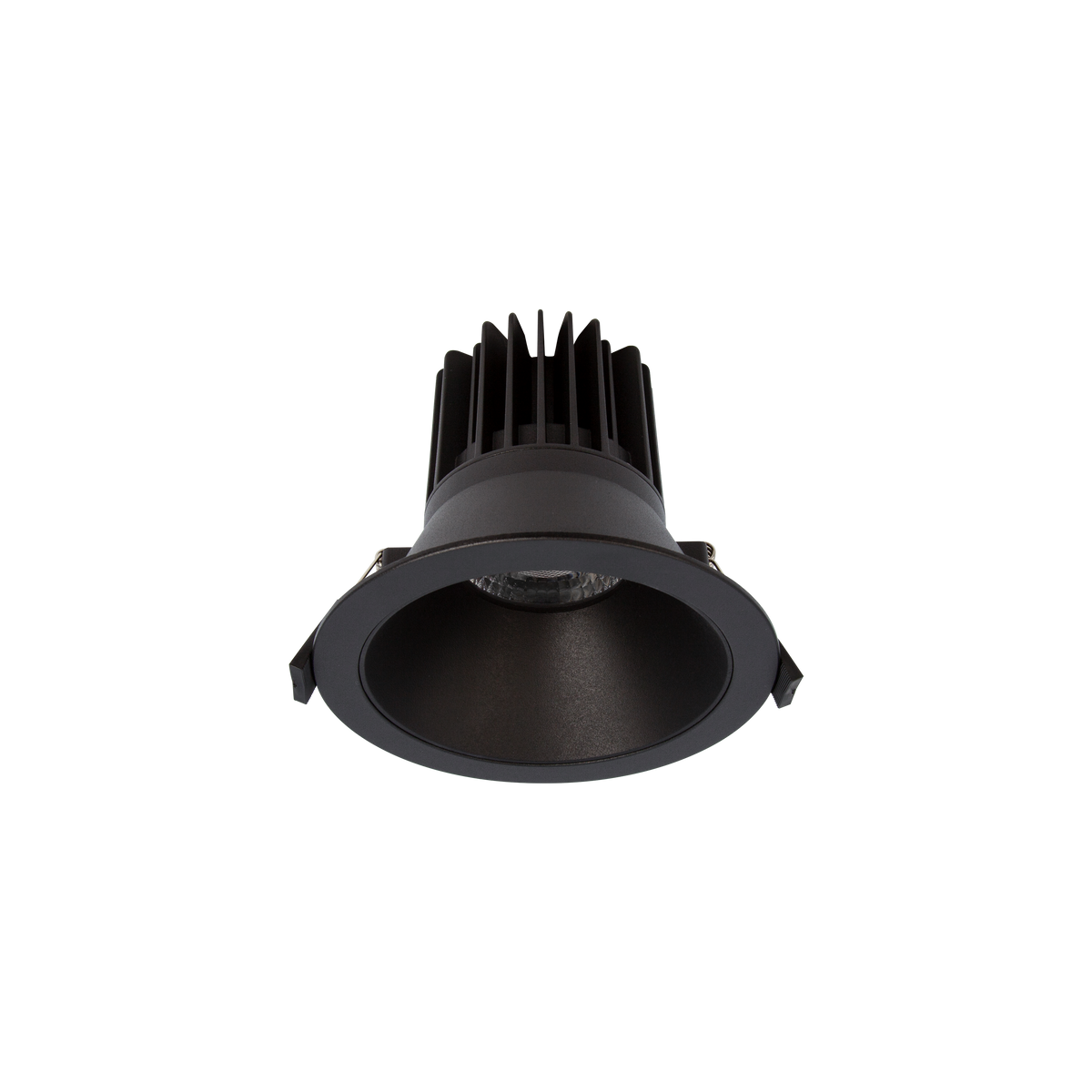

R602 B3K Design Standard Large Downlight Kit Black 3000K
Lumens
Watts
940lm
12W
DCC260-DX-12W-GL 260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Watts
6W-12W
Select Downlights
Design Standard Large Downlight Kit - Triple Wattage White 3000K
Temp.
3000K Warm White
Cut out
130-140mm
Lumens
1000lm, 1350lm or 1850lm (Selectable)
Watts
11W, 15W or 19W
Design Standard Large Downlight Kit - Triple Wattage White 4000K
Temp.
4000K Natural White
Cut out
130-140mm
Lumens
1010lm, 1360lm or 1870lm (Selectable)
Watts
11W, 15W or 19W
Design Standard Large Downlight Kit - Triple Wattage Black 3000K
Temp.
3000K Warm White
Cut out
130-140mm
Lumens
950lm, 1280lm or 1750lm (Selectable)
Watts
11W, 15W or 19W
Design Standard Large Downlight Kit - Triple Wattage Black 4000K
Temp.
4000K Natural White
Cut out
130-140mm
Lumens
1140lm, 1500lm or 1850lm (Selectable)
Watts
11W, 15W or 19W
Design Standard Large Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
130-140mm
Lumens
940lm
Watts
12W
Specifications
R602 B3K
Cut Out
130-140mm
Finish
Black
Colour Temp
3000K Warm White
Watts
12W
Lumens
940lm
Beam Angle
60°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80)
Ingress Protection
IP54
Diameter
150mm
Height
130.5mm
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC, PMMA
Electrical Class
Class II
Driver Output Current
260mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC260-DX-12W-GL
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
Classification
Suitable for Installation Under Insulation
Material
Self-extinguishing Plastic Housing
Resources
