R602
- Checking stock...
Configure your R602 5 options
- White (selected)
- Black

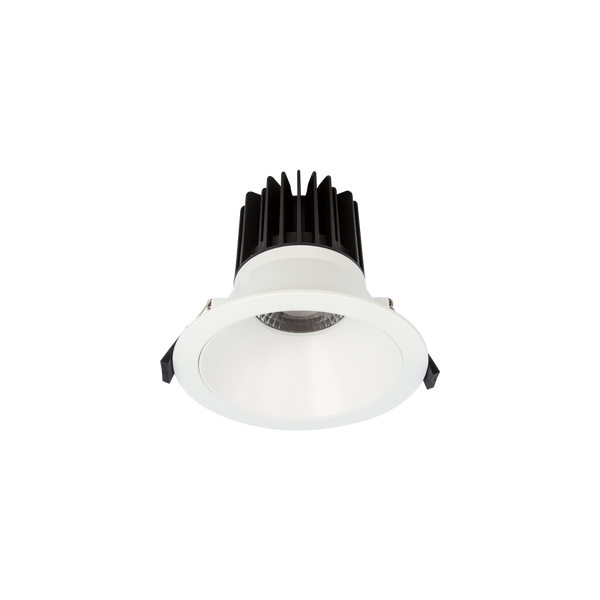

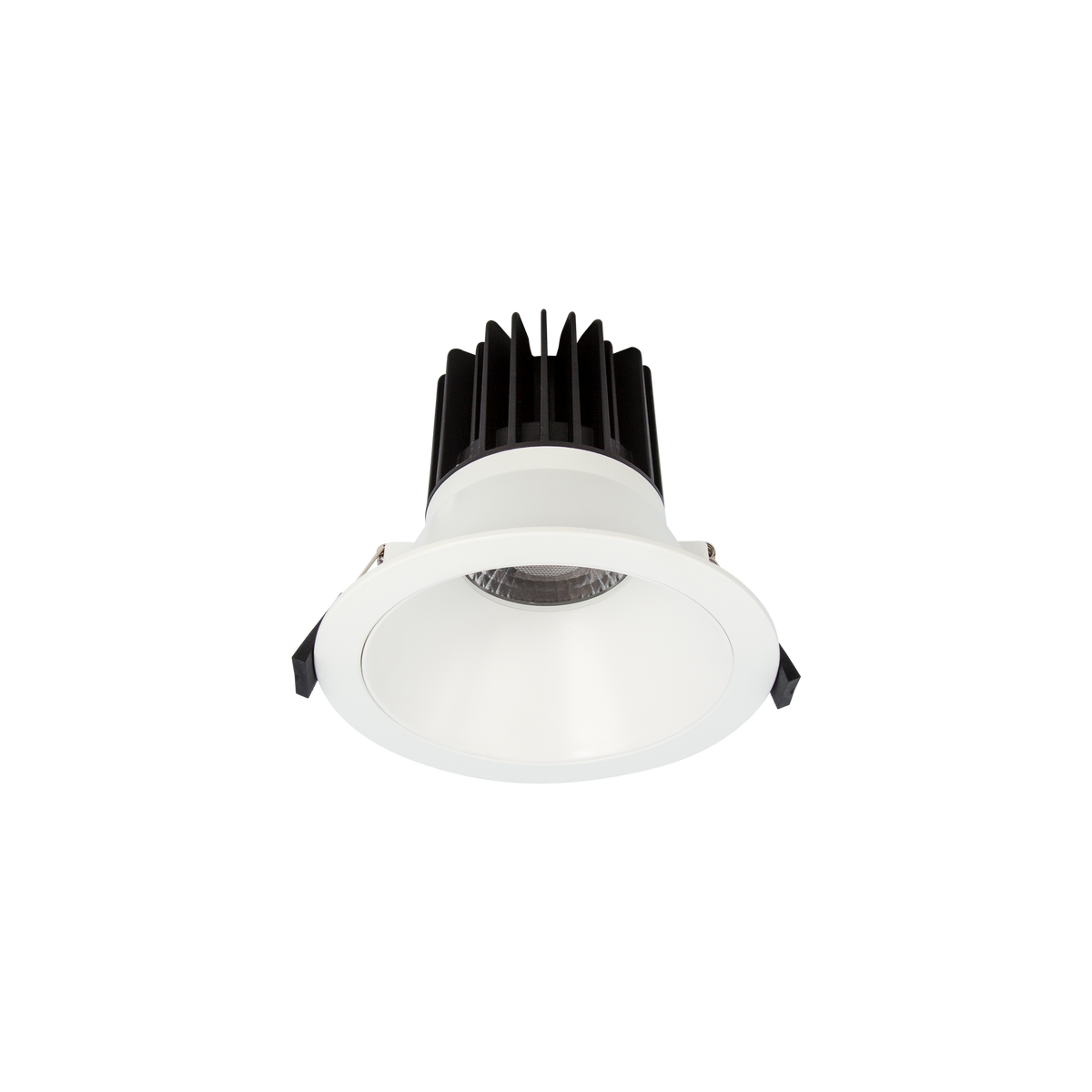

R602 W4KA Design Standard Large Downlight Kit - Triple Wattage White 4000K
Lumens
Watts
1010lm, 1360lm or 1870lm (Selectable)
11W, 15W or 19W
Select Downlights
Design Standard Large Downlight Kit - Triple Wattage White 3000K
Temp.
3000K Warm White
Cut out
130-140mm
Lumens
1000lm, 1350lm or 1850lm (Selectable)
Watts
11W, 15W or 19W
Design Standard Large Downlight Kit - Triple Wattage White 4000K
Temp.
4000K Natural White
Cut out
130-140mm
Lumens
1010lm, 1360lm or 1870lm (Selectable)
Watts
11W, 15W or 19W
Design Standard Large Downlight Kit - Triple Wattage Black 3000K
Temp.
3000K Warm White
Cut out
130-140mm
Lumens
950lm, 1280lm or 1750lm (Selectable)
Watts
11W, 15W or 19W
Design Standard Large Downlight Kit - Triple Wattage Black 4000K
Temp.
4000K Natural White
Cut out
130-140mm
Lumens
1140lm, 1500lm or 1850lm (Selectable)
Watts
11W, 15W or 19W
Design Standard Large Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
130-140mm
Lumens
940lm
Watts
12W
Specifications
R602 W4KA
Cut Out
130-140mm
Finish
White
Colour Temp
4000K Natural White
Watts
11W, 15W or 19W
Lumens
1010lm, 1360lm or 1870lm (Selectable)
Beam Angle
60°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
105,000hrs (L80 B10)
Ingress Protection
IP54
Diameter
150mm
Height
130mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC, PMMA
Electrical Class
Class II
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
None
